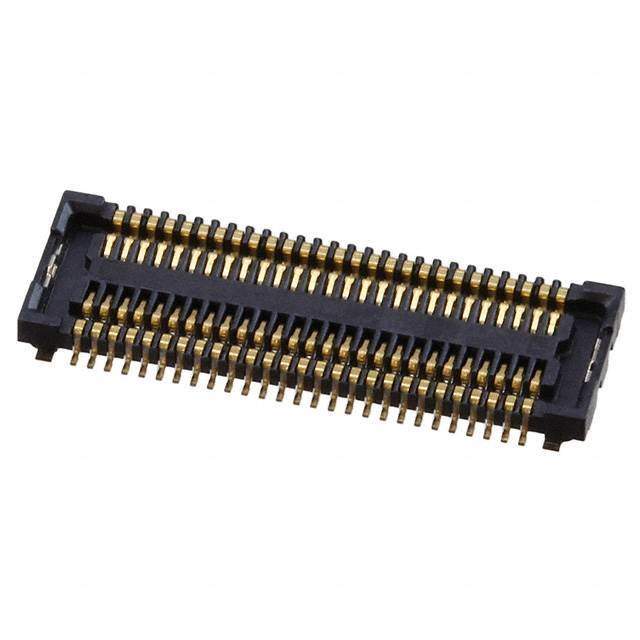

Same model may have multiple batches, images only for reference.

AXK7L54227G

Name: AXK7L54227G
Brand: Panasonic
SKU: 1139850
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	AXK7L54227G
Manufacturer	Panasonic
Catalog	Rectangular Connectors
Description	CONN SOCKET 54POS SMD GOLD / 54 Position Connector Socket, Center Strip Contacts Surface Mount Gold
Datasheet	AXK7L54227G Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Panasonic Electric Works
Series	F4
Package	Tape & Reel (TR)
Product Status	Obsolete
Connector Type	Socket, Center Strip Contacts
Number of Positions	54
Pitch	0.016" (0.40mm)
Number of Rows	2
Mounting	SMD (SMT)
Features	Solder Retention
Contact Finish	Gold
Mated Stacking Heights	0.9mm
Height Above Board	0.034" (0.86mm)
Base Product Number	AXK7L54227
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	3,000
Win Source Part Number	1139850-AXK7L54227G
Ultra Librarian 3D Model	Ultra Librarian AXK7L54227G CAD Model

Alternative Products

Description

The Panasonic Electric Works AXK7L54227G is a rectangular connector array with a pitch of 0.016" (0.40mm) and 54 positions.

Pitch: 0.016" (0.40mm)
Positions: 54
Solder Retention: Yes
Package: Tape and Reel
Manufacturer: Panasonic Electric Works
Status: Obsolete
Supply and Demand: Limited
