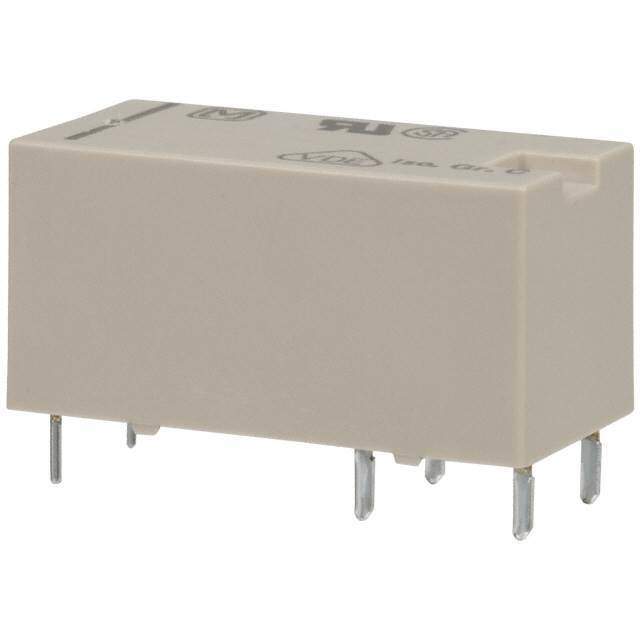

DE1A1B-L-3V

Part No DE1A1B-L-3V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GENERAL PURPOSE DPST 8A 3V
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Latching, Single Coil
Coil Current 33.3mA
Coil Voltage 3VDC
Contact Form DPST-NO/NC (1 Form A and B)
Contact Rating (Current) 8A
Switching Voltage 250VAC, 30VDC - Max
Turn On Voltage (Max) 2.1 VDC
Operate Time 10ms
Release Time 5ms
Mounting Through Hole
Termination Style PC Pin
Coil Power 100 mW
Coil Resistance 90 Ohms
Temperature Range - Operating -40°C to 70°C
Win Source Part Number 014087-DE1A1B-L-3V
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian DE1A1B-L-3V CAD Model

Description

Product Overview

The DE1A1B-L-3V is a versatile electronic component designed for use in low-voltage applications. It provides robust performance and ensures energy efficiency, making it an excellent choice for a wide range of electronic projects.

Features and Benefits

  • Low Voltage Operation: Specifically designed for applications requiring low energy consumption.
  • Energy Efficient: Supports sustainable energy practices by minimizing power usage.
  • Durable Design: Ensures long-term use and reliability for various applications.

Applications

  • Portable Electronic Devices
  • Battery-Powered Systems
  • Wearable Technology
  • Smart Home Devices

Additional Details

Thanks to its low voltage operation, the DE1A1B-L-3V is ideal for environmentally conscious projects that require minimal power consumption without sacrificing performance. Its durable construction further provides long-lasting operational excellence.
