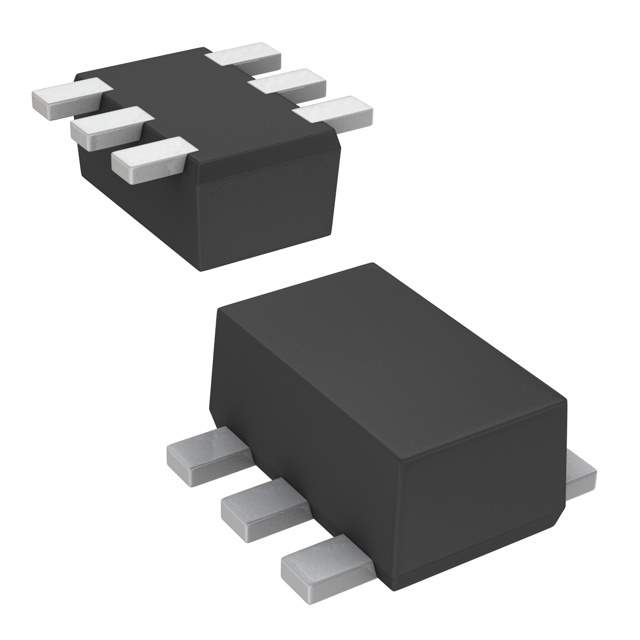

DMG9640N0R

Name: DMG9640N0R
Brand: Panasonic
SKU: 801354
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	DMG9640N0R
Manufacturer	Panasonic
Catalog	Transistors (BJT) - Arrays, Pre - Biased
Description	TRANS PREBIAS NPN/PNP SSMINI6
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Panasonic Electronic Components
Packaging	Reel
Transistor Type	1 NPN, 1 PNP - Pre-Biased (Dual)
Current - Collector (Ic) (Maximum)	100mA
Voltage - Collector Emitter Breakdown (Maximum)	50V
Resistor - Base (R1)	4.7kOhms
Resistor - Emitter Base (R2)	47kOhms
DC Current Gain (hFE) (Min) at Ic, Vce	80 at 5mA, 10V
Vce Saturation (Maximum) at Ib, Ic	250mV at 500μA, 10mA
Current - Collector Cutoff (Maximum)	500nA
Power - Max	125mW
Mounting Style	SMD
Manufacturer Package	SOT-563, SOT-666
Supplier Device Package	SSMini6-F3-B
Part Number Series	DMG9640
Manufacturer Pack Quantity	8,000
MSL Level	1 (Unlimited)
Popularity	High
Supply and Demand Status	Sufficient
Win Source Part Number	801354-DMG9640N0R
Ultra Librarian 3D Model	Ultra Librarian DMG9640N0R CAD Model

Alternative Products

Description

The DMG9640N0R is a pre-biased dual NPN and PNP transistor manufactured by Panasonic Electronic Components.

Applications: Low noise amplifier
Transistor Type: 1 NPN and 1 PNP
Package: SSMini6-F3-B
Device Package: SOT-563 and SOT-666
Maximum Collector Current (Ic): 100mA
Voltage Collector Emitter Breakdown: 50V
Maximum Collector Cutoff: 500nA
Popularity: High
Supply and Demand Status: Sufficient
Manufacturer Pack Quantity: 8,000
MSL Level: 1 (unlimited)
Vce saturation @ Ib, Ic: 250mV @ 500μA, 10mA
Resistor - Base (R1): 4.7kOhms
Resistor - Emitter Base (R2): 47kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce: 80 @ 5mA, 10V
