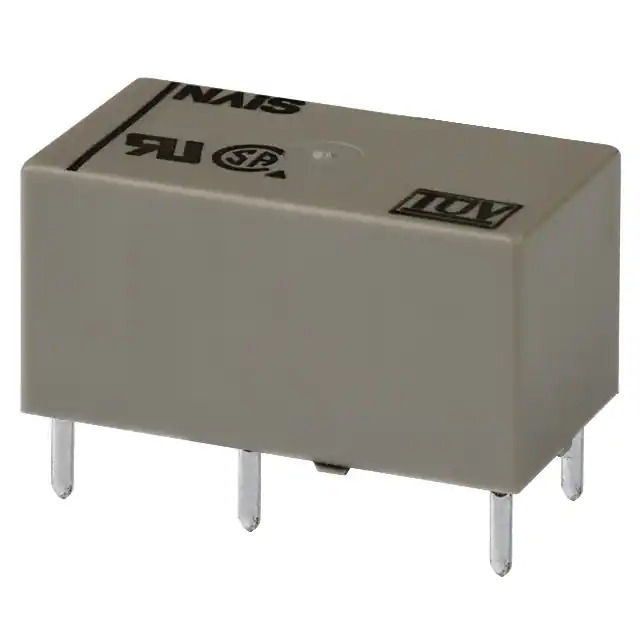

DSP1-L2-DC12V Panasonic
Same model may have multiple batches, images only for reference.

DSP1-L2-DC12V

Part No DSP1-L2-DC12V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPST 5A 12V / General Purpose Relay DPST-NO/NC (1 Form A, 1 Form B) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series DSP
Package Bulk
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form DPST-NO/NC (1 Form A, 1 Form B)
Contact Rating (Current) 5 A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 25 mA
Coil Type Latching, Dual Coil
Features -
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation -
Must Operate Voltage 9.6 VDC
Must Release Voltage -
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 65°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 480 Ohms
Base Product Number DSP1-L
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1378324-DSP1-L2-DC12V
Ultra Librarian 3D Model Ultra Librarian DSP1-L2-DC12V CAD Model

Description

The Panasonic Electric Works DSP series power relays are designed for high-power applications.

  • Contact Configuration: DPST-NO/NC
  • Contact Rating: 5A
  • Switching Voltage: 250VAC, 30VDC - Max
  • Coil Voltage: 12VDC
  • Coil Current: 25mA
  • Coil Type: Latching, Dual Coil
  • Construction: Fully Sealed
  • Must Operate Voltage: 9.6VDC
  • Operate Time: 10ms
  • Termination Style: PC Pin
