Same model may have multiple batches, images only for reference.

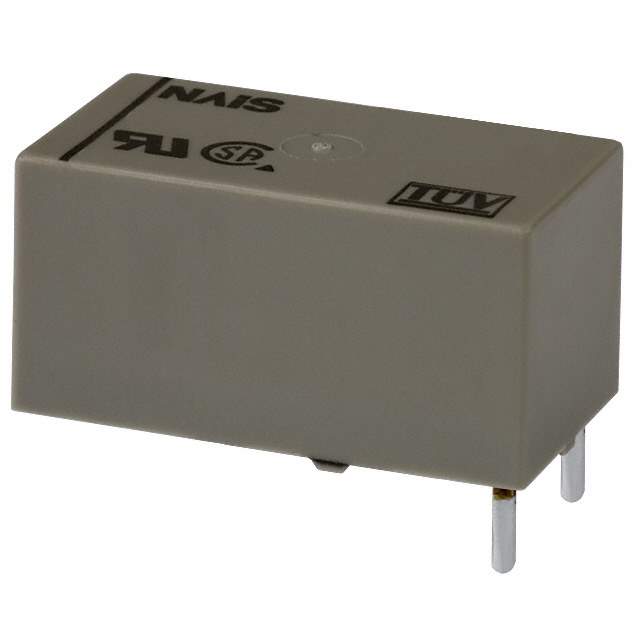

DSP1A-L2-DC12V Real Image
Same model may have multiple batches, images only for reference.

DSP1A-L2-DC12V

Part No DSP1A-L2-DC12V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 8A 12V / MINIATURE POWER RELAY IN DS RELAY SERIES
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Panasonic Electric Works
Packaging Tube
Mounting Style Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 8A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 25mA
Coil Type Latching, Dual Coil
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 9.6 VDC
Operate Time 10ms
Release Time 5ms
Temperature Range - Operating -40°C ~ 60°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 480 Ohms
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809778-DSP1A-L2-DC12V
Ultra Librarian 3D Model Ultra Librarian DSP1A-L2-DC12V CAD Model

Description

The Panasonic Electric Works 809778-DSP1A-L2-DC12V is a general purpose latching dual coil relay that has medium popularity in the market. Panasonic Electric Works.

  • Coil Voltage: 12VDC
  • Contact Rating: 8A
  • Switching Voltage: 250VAC and 30VDC - Max
