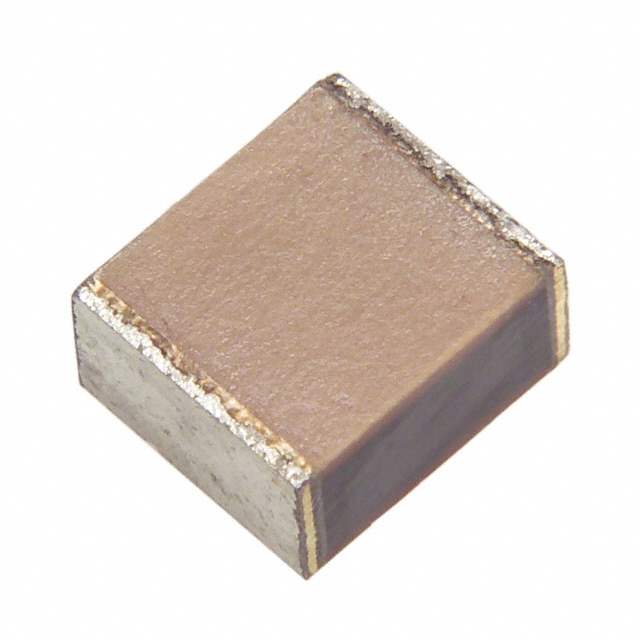

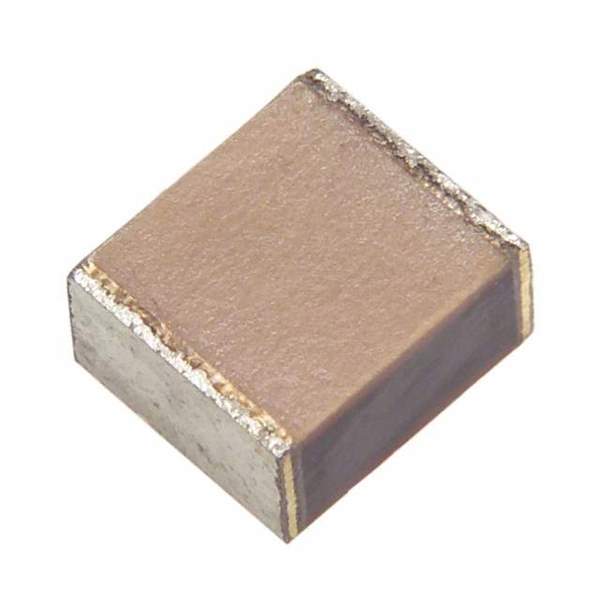

ECH-U1184JCV Real Image
Same model may have multiple batches, images only for reference.

ECH-U1184JCV

Part No ECH-U1184JCV
Manufacturer Panasonic
Catalog Film Capacitors
Description CAP FILM 0.18UF 5% 100VDC 2825
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Capacitance 0.18μF
Tolerance ±5%
Voltage Rating - DC 100V
Dielectric Material Polyphenylene Sulfide (PPS), Metallized - Stacked
Temperature Range - Operating -55°C to 105°C
Mounting SMD (SMT)
Dimension 0.280" L x 0.248" W (7.10mm x 6.30mm)
Height - Seated (Max) 0.169" (4.30mm)
Termination Solder Pads
Applications General Purpose
Win Source Part Number 120343-ECH-U1184JCV
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian ECH-U1184JCV CAD Model

Description

Product Overview

The ECH-U1184JCV is a premium electronic capacitor that stands out for its efficiency and reliability in diverse conditions. It is crafted with precision to deliver consistent performance.

Features and Benefits

  • High efficiency with minimal energy dissipation
  • Robust build quality for high reliability
  • Reduced footprint for compact applications
  • Excellent frequency response characteristics

Applications

  • Audio equipment
  • Embedded systems
  • Data processing units
  • Power converters

This component is an excellent choice for applications demanding high performance and compact design.
