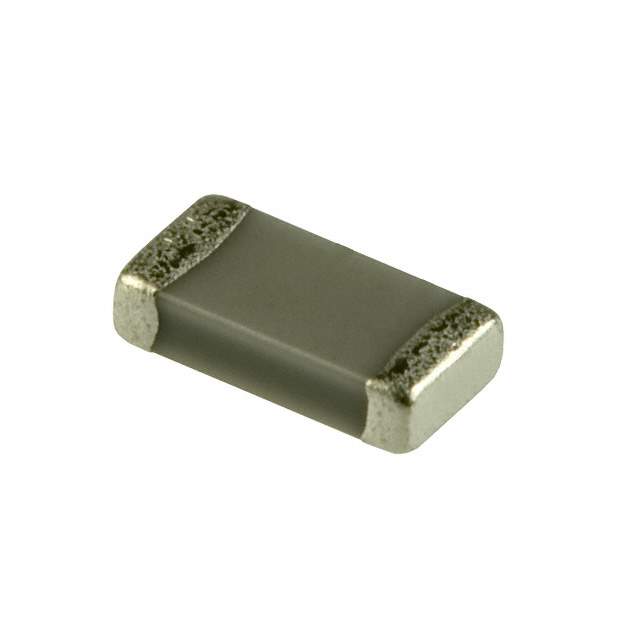

The ECJ3FB1E474K is a ceramic capacitor manufactured by Panasonic, designed for general-purpose applications where reliability and stable performance are crucial. These capacitors are commonly used in electronic circuits for various functions such as filtering, decoupling, and bypassing.

Applications

• Bypass capacitors in power supplies
• Decoupling capacitors in digital circuits
• Filtering in audio circuits
• General-purpose circuit stabilization
• Consumer electronics, including mobile devices and audio equipment

Features

• High Capacitance: 0.47µF capacitance value.
• Voltage Rating: Rated for 25V operation.
• X5R Dielectric: Provides stable capacitance over temperature and voltage.
• Surface Mount Device (SMD): Suitable for automated assembly.
• RoHS Compliant: Environmentally friendly, meeting RoHS standards.

Benefits

• Effective Noise Filtering: Reduces unwanted noise and ripple in electronic circuits.
• Stable Performance: Maintains consistent capacitance value under varying conditions.
• Compact Size: Saves valuable board space in densely populated circuits.
• Reliable Operation: Ensures long-term reliability in demanding applications.
• Easy Assembly: Facilitates efficient manufacturing processes.

Additional Details

The ECJ3FB1E474K is a multilayer ceramic capacitor (MLCC) offering low equivalent series resistance (ESR) and low equivalent series inductance (ESL). The operating temperature range typically spans from -55°C to +85°C. The X5R dielectric ensures good temperature stability, with a typical capacitance variation of ±15% over the operating temperature range. These capacitors are widely used in various electronic devices to improve circuit performance and stability. The part is lead-free and halogen-free, making it suitable for environmentally conscious applications.
