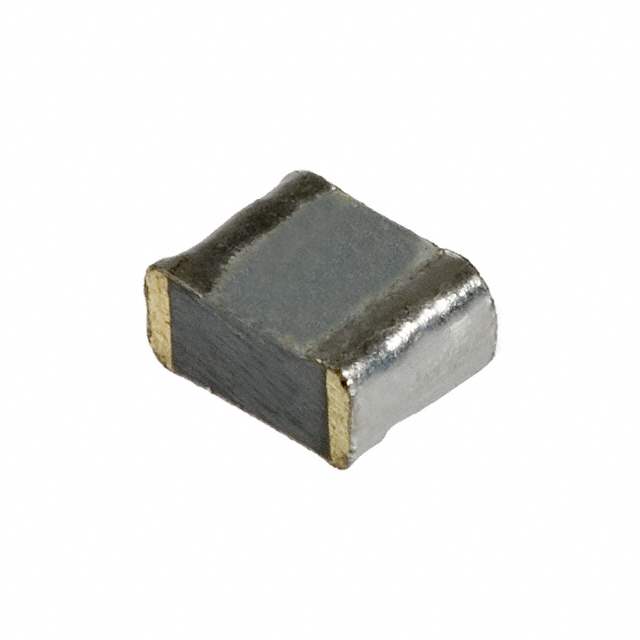

ECW-U1H183JB5 Real Image
Same model may have multiple batches, images only for reference.

ECW-U1H183JB5

Part No ECW-U1H183JB5
Manufacturer Panasonic
Catalog Film Capacitors
Description CAP FILM 0.018UF 5% 50VDC 1210
Datasheet
ECW-U1H183JB5 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Capacitance 0.018μF
Tolerance ±5%
Voltage Rating - DC 50V
Temperature Range - Operating -55°C to 105°C
Mounting SMD (SMT)
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.063" (1.60mm)
Termination Solder Pads
Applications General Purpose
Win Source Part Number 121730-ECW-U1H183JB5
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ECW-U1H183JB5 CAD Model

Description

ECW-U1H183JB5

The ECW-U1H183JB5 capacitor stands out with its innovative design and optimal performance, making it ideal for high-frequency and high-voltage applications.

Features and Benefits

  • Superior voltage capability
  • Efficient energy conversion
  • Outstanding tolerance levels
  • Slim profile for easy installation

Applications

  • DC-DC converters
  • Motor drives
  • Inverter circuits
  • High-voltage power transformers

Designed to provide low self-inductance, the capacitor is perfect for critical applications requiring high reliability and precision performance.
