Same model may have multiple batches, images only for reference.

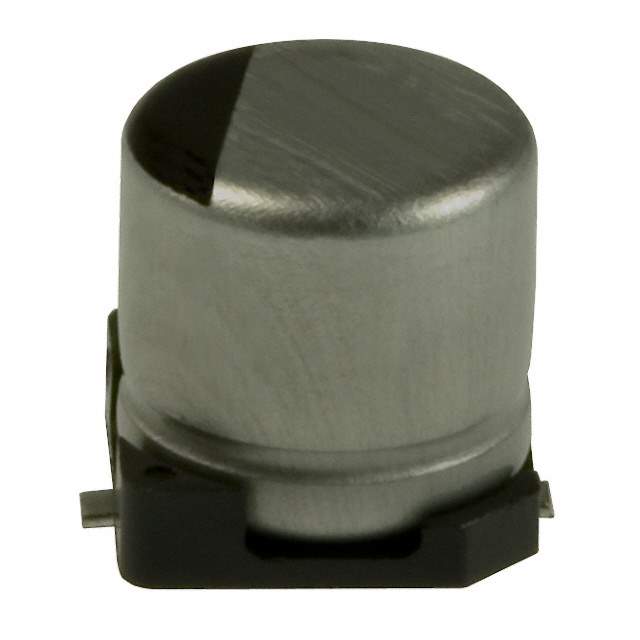

EEE-1AA101WAR Real Image
Same model may have multiple batches, images only for reference.

EEE-1AA101WAR

Part No EEE-1AA101WAR
Manufacturer Panasonic
Catalog Aluminum Capacitors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series S
Package Tape & Reel
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 10 V
Lifetime @ Temp. 1000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 50 mA @ 120 Hz
Ripple Current @ High Frequency 85 mA @ 10 kHz
Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.213" (5.40mm)
Surface Mount Land Size 0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Base Product Number EEE-1AA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names EEE1AA101WAR,PCE4566CT,PCE4566DKR,PCE4566TR
Standard Package 1,000
Win Source Part Number 1316291-EEE-1AA101WAR
Ultra Librarian 3D Model Ultra Librarian EEE-1AA101WAR CAD Model

Description

The EEE-1AA101WAR is an aluminum electrolytic capacitor manufactured by Panasonic Electronic Components.

  • Capacitance: 100 µF
  • Voltage: 10V
  • Tolerance: ±20%
  • Ripple Current: 50 mA @ 120 Hz
  • Application: Automotive
  • RoHS Compliant: Yes
  • Height: 0.213" (5.40mm)
  • Surface Mount Land Size: 0.209" L x 0.209" W (5.30mm x 5.30mm)
  • Temperature Range: -40°C to 85°C
