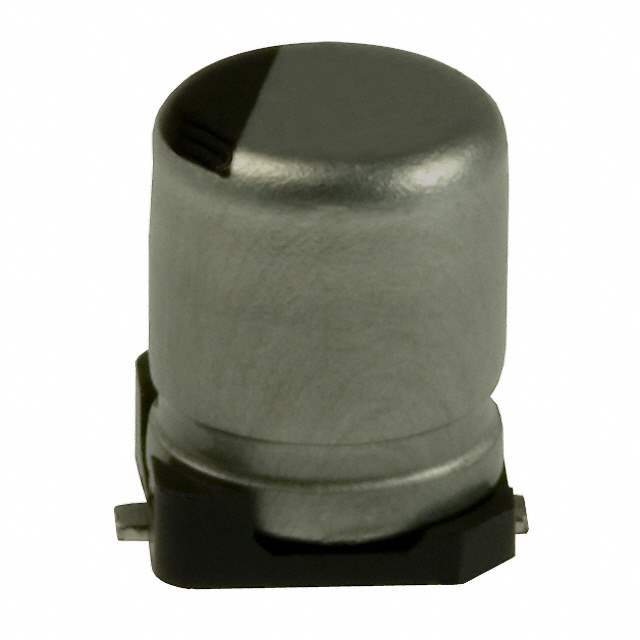

EEE-1CA220WR Real Image
Same model may have multiple batches, images only for reference.

EEE-1CA220WR

Part No EEE-1CA220WR
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 22UF 20% 16V SMD
Datasheet
EEE-1CA220WR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Capacitance 22μF
Tolerance ±20%
Voltage Rating 16V
Lifetime @ Temp. 1000 Hrs @ 85°C
Temperature Range - Operating -40°C to 85°C
Polarization Polar
Applications General Purpose
Ripple Current - Low Frequency 28mA @ 120Hz
Ripple Current - High Frequency 47.6mA @ 10kHz
Height - Seated (Max) 0.213" (5.40mm)
Surface Mount Land Size 0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting SMD (SMT)
Dimension Radial, Can - SMD
Win Source Part Number 107209-EEE-1CA220WR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian EEE-1CA220WR CAD Model

Description

Product Overview

The EEE-1CA220WR capacitor offers unmatched performance in regulating voltage in electronic circuits. Its high reliability makes it suitable for a broad range of applications.

Features and Benefits

  • High ripple current capacity
  • Excellent voltage regulation
  • Compact and durable design
  • Cost-effective and reliable

Applications

  • DC-DC converters
  • Power management systems
  • Consumer electronics
  • Communication devices
