Same model may have multiple batches, images only for reference.

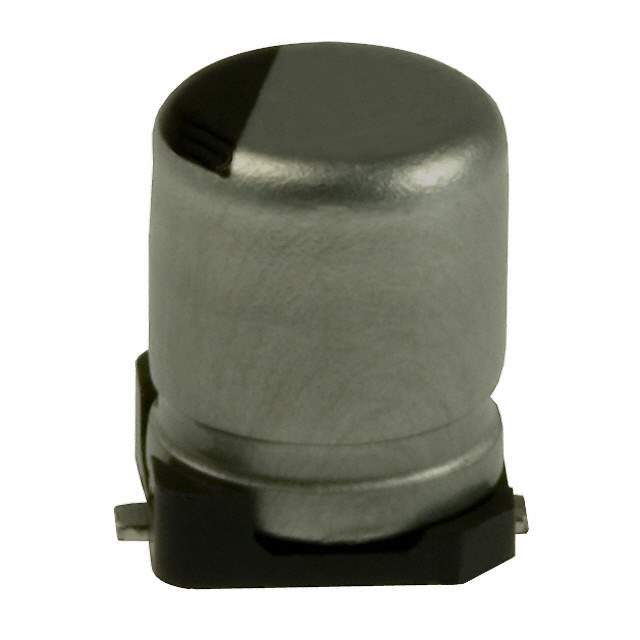

EEE-1EA4R7SR Real Image
Same model may have multiple batches, images only for reference.

EEE-1EA4R7SR

Part No EEE-1EA4R7SR
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 4.7UF 20% 25V SMD / 4.7 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Product Status Not For New Designs
Capacitance 4.7 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 22 mA @ 120 Hz
Ripple Current @ High Frequency 37.4 mA @ 10 kHz
Size / Dimension 0.157" Dia (4.00mm)
Height - Seated (Max) 0.213" (5.40mm)
Surface Mount Land Size 0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Surface Mount
Case / Package Radial, Can - SMD
Base Product Number EEE-1EA
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number PCE3910TR,EEE1EA4R7SR,PCE3910CT,PCE3910DKR
Standard Package 2,000
Win Source Part Number 1328599-EEE-1EA4R7SR
Ultra Librarian 3D Model Ultra Librarian EEE-1EA4R7SR CAD Model

Description

The Panasonic Electronic Components EEE-1EA4R7SR is an aluminum electrolytic capacitor with a capacitance of 4.7 µF and a voltage rating of 25 V.

  • Capacitance: 4.7 µF
  • Voltage Rating: 25 V
  • Mounting Type: SMD
  • Case/Package: Radial, Can - SMD
  • Height: 0.213" (5.40mm)
  • Diameter: 0.157" (4.00mm)
  • Lifetime: 2000 hours @ 85°C
  • Supply Status: Limited
  • AEC-Q200 Rated: Yes
