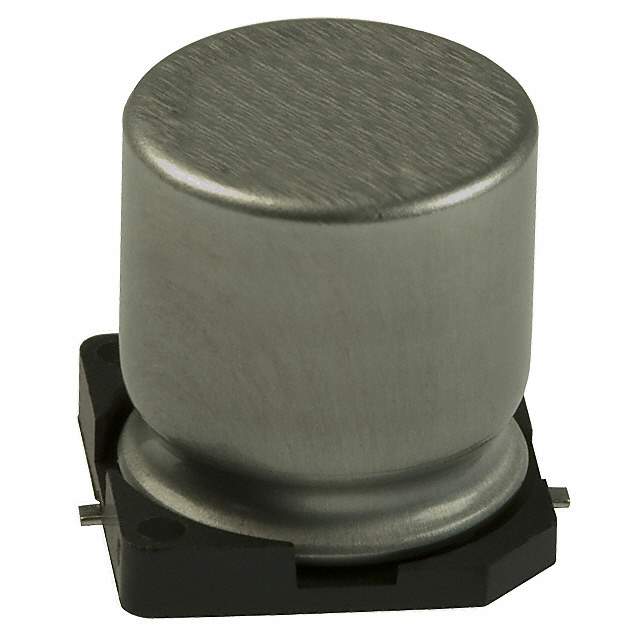

The Panasonic EEE-FK1E102AQ is an aluminum electrolytic capacitor with a capacitance of 1000 µF and a voltage rating of 25V.

• Capacitance: 1000 µF
• Voltage Rating: 25V
• Tolerance: ±20%
• Impedance: 60 mOhms
• Series: FK
• Package: Radial, Can - SMD
• Surface Mount Land Size: 0.531" L x 0.531" W (13.50mm x 13.50mm)
• Height Seated (Max): 0.551" (14.00mm)
• Polarized: Yes
• Temperature Range: -55°C ~ 105°C
• Ripple Current (Low Frequency): 825 mA @ 120 Hz
• Ripple Current (High Frequency): 1.1 A @ 100 kHz
• Application: Automotive and High-Temperature Reflow
• Lifetime: 5000 Hrs @ 105°C
• AEC-Q200 Rated: Yes
• Standard Package: 200
