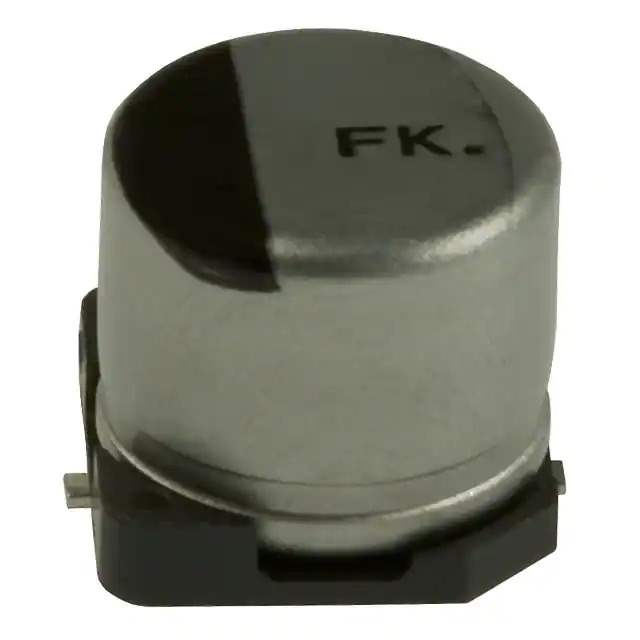

EEE-FK1H220P Real Image
Same model may have multiple batches, images only for reference.

EEE-FK1H220P

Part No EEE-FK1H220P
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 22UF 20% 50V SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Panasonic
Series FK
Package Tape & Reel
Product Status Active
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 123.8 mA @ 120 Hz
Ripple Current @ High Frequency 165 mA @ 100 kHz
Impedance 880 mOhms
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.240" (6.10mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Base Product Number EEE-FK
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 850666-EEE-FK1H220P
Ultra Librarian 3D Model Ultra Librarian EEE-FK1H220P CAD Model

Description

The Panasonic 850666-EEE-FK1H220P is an aluminum electrolytic capacitor designed for automotive applications.

  • Series: FK
  • Capacitance: 22 µF
  • Tolerance: ±20%
  • Voltage Rating: 50 V
  • AEC-Q200: Yes
  • Mounting Type: Surface Mount
  • Package: Radial, Can - SMD
  • Size: 0.248" Diameter, 0.240" Height
  • Lifetime: 2000 hours @ 105°C
  • Operating Temperature: -55°C to 105°C
  • Applications: Automotive Power Supply
