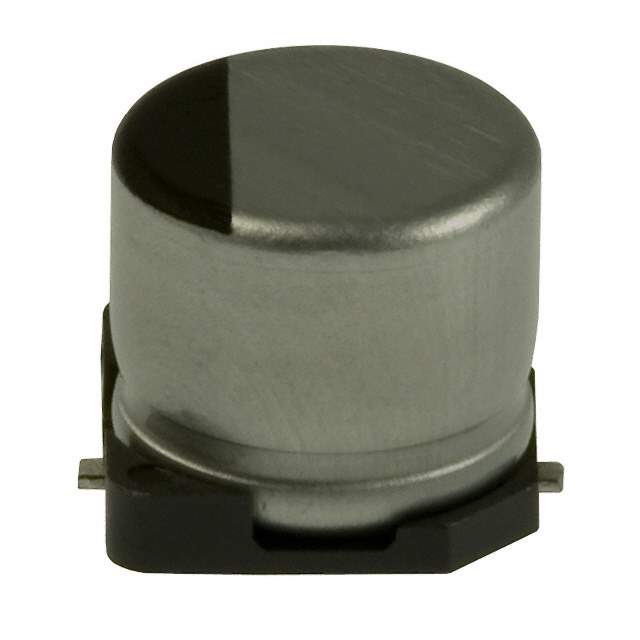

EEE-HA1C101WP Real Image1 EEE-HA1C101WP Real Image2
Same model may have multiple batches, images only for reference.
EEE-HA1C101WP Real Image1 EEE-HA1C101WP Real Image2
EEE-HA1C101WP Real Image1 EEE-HA1C101WP Real Image2
Same model may have multiple batches, images only for reference.

EEE-HA1C101WP

Part No EEE-HA1C101WP
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 16V SMD / 100 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Panasonic
Series HA
Package Tape & Reel
Product Status Not For New Designs
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 70 mA @ 120 Hz
Ripple Current @ High Frequency 119 mA @ 10 kHz
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.213" (5.40mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Base Product Number EEE-HA
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Standard Package 1,000 pcs
Win Source Part Number 1381990-EEE-HA1C101WP
Ultra Librarian 3D Model Ultra Librarian EEE-HA1C101WP CAD Model

Description

The EEE-HA1C101WP is an aluminum electrolytic capacitor from Panasonic.

  • Series: HA
  • Capacitance: 100 µF
  • Mounting Type: Surface Mount
  • Package: Tape & Reel
  • Size: 0.248" Dia (6.30mm)
  • Seated Height: 0.213" (5.40mm)
  • Voltage Rating: 16V
  • Tolerance: ±20%
  • AEC-Q200: Yes
  • Ripple Current (Low Frequency): 70 mA
  • Ripple Current (High Frequency): 119 mA
  • Moisture Sensitivity Level: 1 (Unlimited)
  • Application: Automotive
