Same model may have multiple batches, images only for reference.

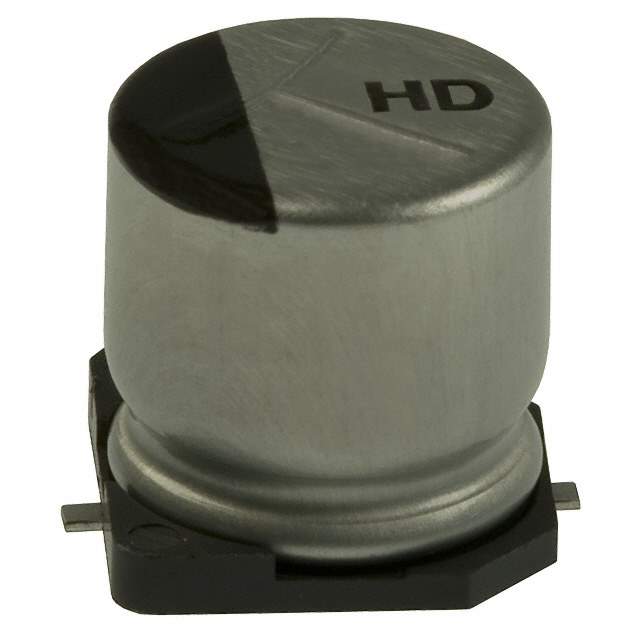

EEE-HD2A100P Real Image
Same model may have multiple batches, images only for reference.

EEE-HD2A100P

Part No EEE-HD2A100P
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 10UF 20% 100V SMD / 10 µF 100 V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series HD
Package Tape & Reel
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 100 V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive, High Temperature Reflow
Ripple Current @ Low Frequency 55 mA @ 120 Hz
Ripple Current @ High Frequency 93.5 mA @ 10 kHz
Impedance 1.5 Ohms
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.402" (10.20mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Base Product Number EEE-HD
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1338257-EEE-HD2A100P
Ultra Librarian 3D Model Ultra Librarian EEE-HD2A100P CAD Model

Description

The Panasonic Electronic Components EEE-HD series aluminum electrolytic capacitor is a polarized capacitor with a capacitance of 10 µF and a rated voltage of 100V.

  • Series: EEE-HD
  • Polarization: Polarized
  • Capacitance: 10 µF
  • Rated Voltage: 100V
  • Tolerance: ±20%
  • Impedance: 1.5 Ohms
  • Ripple Current: 55 mA @ 120 Hz, 93.5 mA @ 10 kHz
  • Lifetime: 5000 hours @ 105°C
  • Mounting Type: Surface Mount
  • Package/Case: Radial, Can - SMD (EEE-HD)
  • Operating Temperature: -40°C to 105°C
  • AEC-Q200 Rated: Yes
