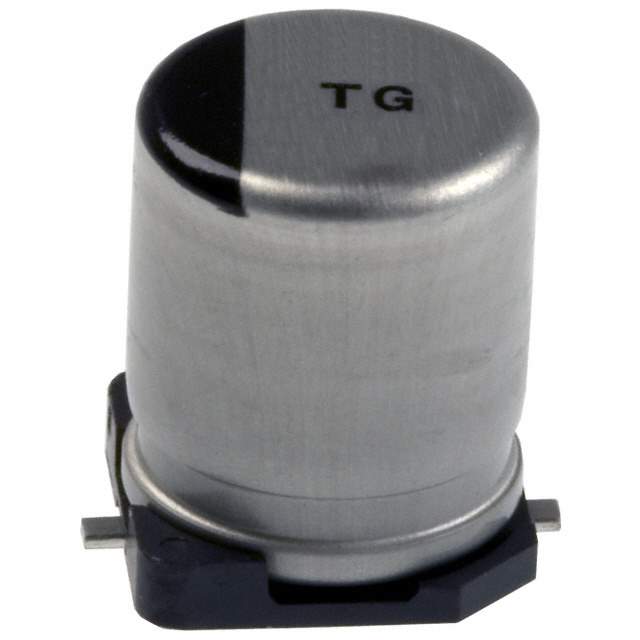

EEE-TG1V101UP Real Image
Same model may have multiple batches, images only for reference.

EEE-TG1V101UP

Part No EEE-TG1V101UP
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 35V SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Series Automotive, AEC-Q200, TG
Capacitance 100μF
Tolerance ±20%
Voltage Rating 35V
ESR (Equivalent Series Resistance) 500 mOhm @ 100kHz
Lifetime @ Temp. 2000 Hrs @ 125°C
Operating Temperature Range -40°C ~ 125°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 128.1mA @ 120Hz
Ripple Current - High Frequency 197mA @ 100kHz
Dimension 0.315" Dia (8.00mm)
Height - Seated (Maximum) 0.402" (10.20mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting SMD
Package Radial, Can - SMD
Win Source Part Number 763568-EEE-TG1V101UP
Popularity Medium
Supply and Demand Status Limited
Quantity per package 500
Family Name TG
Introduction Date July 04, 2004
ECCN EAR99
Country of Origin Japan, Malaysia
Halogen Free Unknown
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian EEE-TG1V101UP CAD Model

Description

The Panasonic Electronic Components 763568-EEE-TG1V101UP is a 100μF polarized capacitor with a voltage rating of 35V. It has a tolerance of ±20% and is designed for general applications.

  • Capacitance: 100μF
  • Voltage Rating: 35V
  • Tolerance: ±20%
  • Mounting: SMD
  • Maximum Seated Height: 0.402" (10.20mm)
  • Ripple Current @ 120Hz: 128.1mA
  • Ripple Current @ 100kHz: 197mA
  • Package: Radial can - SMD
  • Dimension: 0.315" Dia (8.00mm)
  • Supply and Demand Status: Limited
  • Quantity Per Package: 500
