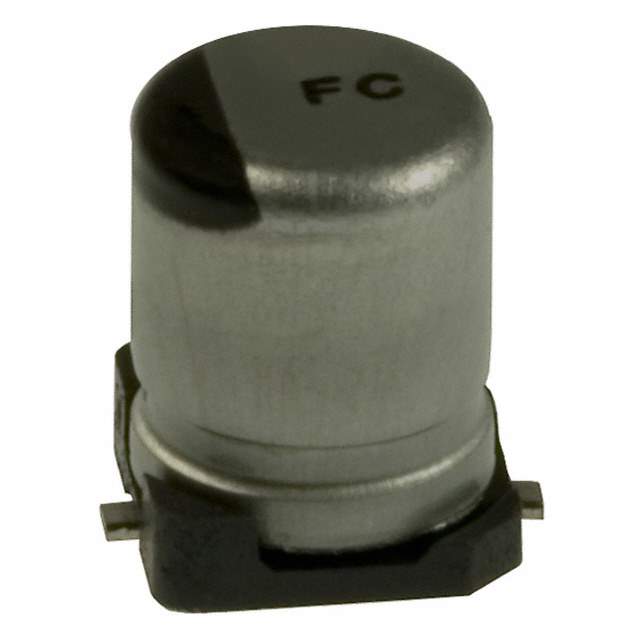

Same model may have multiple batches, images only for reference.

EEEFC1H1R0R

Name: EEEFC1H1R0R
Brand: Panasonic
SKU: 974171
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	EEEFC1H1R0R
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	Cap Aluminum 1uF 50V ±20% Cylindrical 8.4mA 1000 hr 85°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Capacitance	1 µF
Mounting	SMD (SMT)
Case / Package	Radial
Contact Plating	Tin
Diameter	4 mm
Dielectric Material	Aluminium
ESR (Equivalent Series Resistance)	5 Ω
Height	5.4 mm
Height - Seated (Max)	5.4102 mm
Impedance	5 Ω
Lead Free	Yes
Lead Length	1.8 mm
Lead Pitch	1 mm
Leakage Current	3 µA
Length	5.5 mm
Life (Hours)	1000 hours
Material	Aluminium
Maximum Operating Temperature	105 °C
Min Operating Temperature	-40 °C
Mount	PCB, Surface Mount
Number of Pins	2
Packaging	Cut Tape
Radiation Hardening	No
REACH SVHC	No SVHC
Ripple Current	30 mA
Ripple Current (AC)	30 mA
RoHS	Compliant
Schedule B	8532220020
Termination	SMD/SMT
Tolerance	20 %
Voltage	50 V
Voltage Rating	50 V
Voltage Rating (AC)	50 V
Voltage Rating (DC)	50 V
Width	4.3 mm
Win Source Part Number	974171-EEEFC1H1R0R
Categories	Aluminum Capacitors
Manufacturer	Panasonic
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian EEEFC1H1R0R CAD Model

Alternative Products

Description

The 974171-EEEFC1H1R0R is an aluminum capacitor manufactured by Panasonic.

Capacitance: 1 μF
Tolerance: 20%
Voltage Rating: 50V DC
Length: 5.5mm
Width: 4.3mm
Height: 5.4mm
Lead Pitch: 1mm
Lead Length: 1.8mm
Suitable For: PCB surface mount
Case/Package: Radial
Maximum Operating Temperature: 105°C
Minimum Operating Temperature: -40°C
Lead-Free: Yes
RoHS Compliant: Yes
Ideal For: Different applications that require its use
