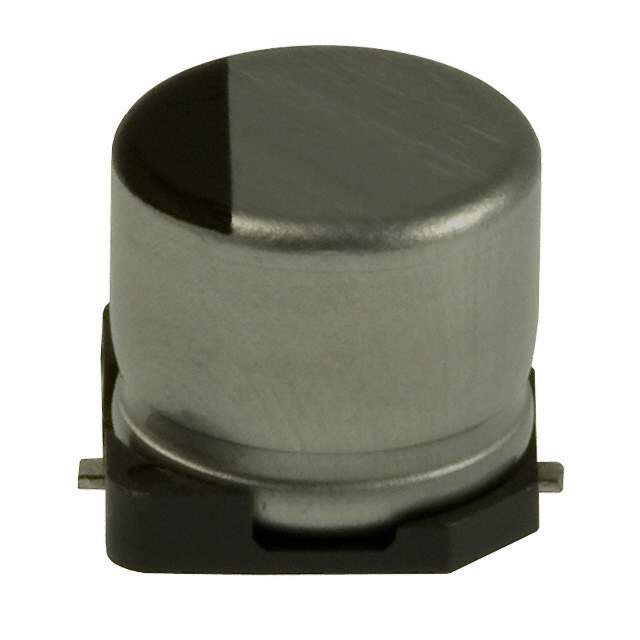

The EEEHA1C470WR is an aluminum electrolytic capacitor from Panasonic's HA series. It's designed for general-purpose applications requiring reliable performance and a compact size. This capacitor offers a good balance of capacitance, voltage rating, and operating temperature range, making it suitable for a wide range of electronic circuits.

Applications

• General purpose power supplies
• Filtering circuits
• Bypass circuits
• Coupling circuits
• Timing circuits
• Consumer electronics
• Industrial equipment

Features

• General Purpose Design: Suitable for a broad range of applications.
• Compact Size: Space-saving design for use in miniaturized devices.
• Wide Operating Temperature Range: Operates reliably across a range of temperatures.
• High Ripple Current Capability: Capable of handling moderate ripple currents.
• Long Life: Offers a reasonable lifespan under normal operating conditions.
• RoHS Compliant: Meets environmental regulations regarding hazardous substances.

Benefits

• Versatile Application: Can be used in various electronic circuits.
• Space Efficiency: Allows for denser board layouts.
• Reliable Performance: Provides stable operation over a wide temperature range.
• Cost-Effective Solution: Offers a good balance of performance and price.

Technical Specifications

The EEEHA1C470WR has a capacitance of 47μF and a voltage rating of 16VDC. The capacitor operates within a temperature range of -40°C to +85°C. Specific dimensions can be found in the Panasonic HA series datasheet. While not specifically a low-ESR capacitor, it provides adequate ripple current handling for many common applications. Refer to the datasheet for detailed electrical characteristics, including ESR and impedance values.

This capacitor is a reliable and cost-effective choice for general-purpose applications. Its compact size and wide operating temperature range make it suitable for use in a variety of electronic devices. While it may not offer the ultra-low ESR of specialized capacitors, the EEEHA1C470WR provides a good balance of performance and price for standard filtering, bypass, and coupling applications. Engineers seeking a versatile and dependable capacitor for general-purpose circuits will find this component to be a suitable choice.
