Same model may have multiple batches, images only for reference.

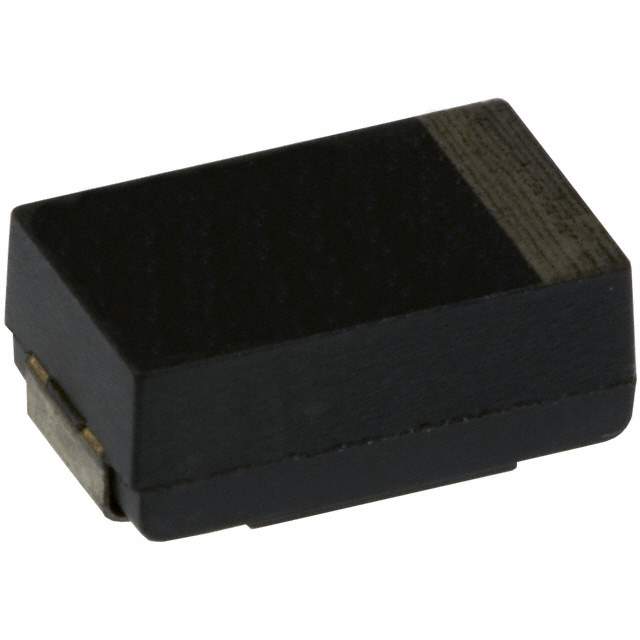

EEF-UD0G181R Real Image
Same model may have multiple batches, images only for reference.

EEF-UD0G181R

Part No EEF-UD0G181R
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 180UF 20% 4V SMD  /  180 µF 4 V Aluminum - Polymer Capacitors 2917 (7343 Metric) 18mOhm 1000 Hrs @ 105°C
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series SP-Cap UD
Package Tape & Reel
Product Status Obsolete
Type Polymer
Capacitance 180 µF
Tolerance ±20%
Voltage - Rated 4 V
ESR (Equivalent Series Resistance) 18mOhm
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Applications General Purpose
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) 0.118" (3.00mm)
Surface Mount Land Size 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting SMD (SMT)
Package / Case 2917 (7343 Metric)
Base Product Number EEF-UD
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8532.22.0020
Other Names PCE3599CT,EEFUD0G181R,PCE3599DKR,PCE3599DKR-NDR,PCE3599TR
Standard Package 2,000
Win Source Part Number 1164396-EEF-UD0G181R
Ultra Librarian 3D Model Ultra Librarian EEF-UD0G181R CAD Model

Description

This component has a win source part number of 1164396-EEF-UD0G181R and is a capacitor with a capacitance of 180 µF and a voltage rating of 4 V.

  • Tolerance: ±20 percent
  • ESR: 18mOhm
  • Application: General purpose
  • Surface Mount Land Size: 0.287" L x 0.169" W (7.30mm x 4.30mm)
