Same model may have multiple batches, images only for reference.

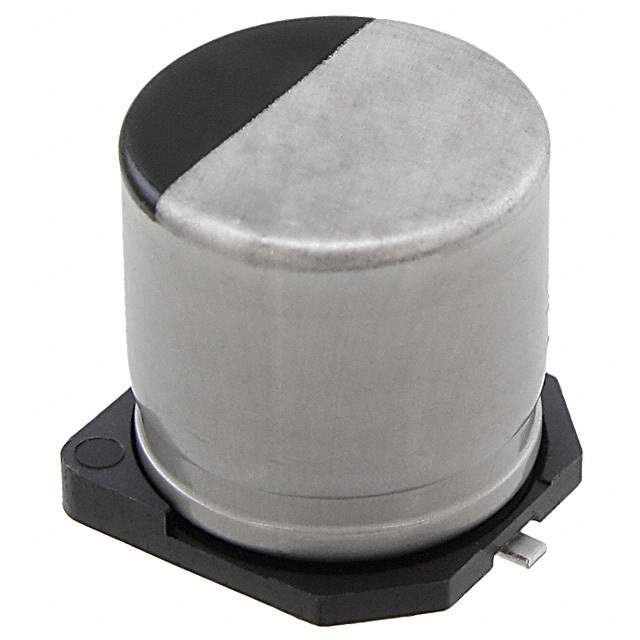

EEH-ZC1H121P Real Image
Same model may have multiple batches, images only for reference.

EEH-ZC1H121P

Part No EEH-ZC1H121P
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY HYB 120UF 50V SMD / 120 µF 50 V Aluminum - Polymer Capacitors Radial, Can - SMD 28mOhm 4000 Hrs @ 125°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Type Hybrid
Capacitance 120 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) 28mOhm
Lifetime @ Temp. 4000 Hrs @ 125°C
Temperature Range - Operating -55°C ~ 125°C
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 240 mA @ 100 Hz
Ripple Current @ High Frequency 1.6 A @ 100 kHz
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Surface Mount
Case / Package Radial, Can - SMD
Base Product Number EEH-ZC
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number P19316TR,P19316CT,P19316DKR,EEHZC1H121P
Standard Package 500
Win Source Part Number 1330854-EEH-ZC1H121P
Ultra Librarian 3D Model Ultra Librarian EEH-ZC1H121P CAD Model

Description

The Panasonic Electronic Components 1330854-EEH-ZC1H121P is an aluminum-polymer capacitor that comes in a reel - TR packaging.

  • Type: Hybrid
  • Size: 0.394" Dia (10.00mm)
  • Application: Automotive
  • Height: 0.413" (10.50mm)
  • Capacitance: 120 µF
  • Tolerance: ±20%
  • Voltage Rating: 50V
  • AEC-Q200 Rated: AEC-Q200 rated
  • ESR: 28mOhm
  • Lifetime: 4000 Hrs @ 125°C
  • Case/Package: Radial, can - SMD
  • Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
  • Compliance: ROHS3 compliant
  • ECCN: EAR99
