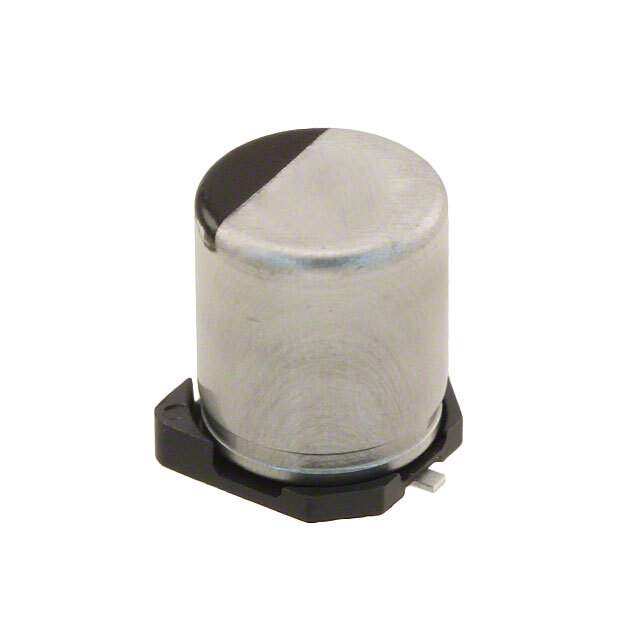

EEHZC1V680XP Real Image
Same model may have multiple batches, images only for reference.

EEHZC1V680XP

Part No EEHZC1V680XP
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description Cap Aluminum Polymer Hybrid 68uF 35VDC 20% (6.3 X 7.7mm) SMD 0.035 Ohm 1400mA 4000h 125C Embossed T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Capacitance 68 µF
Mounting SMD (SMT)
Case / Package Radial
Diameter 6.3 mm
ESR (Equivalent Series Resistance) 35 mΩ
Height 7.7 mm
Height - Seated (Max) 8.001 mm
Lead Diameter 650 µm
Lead Free Yes
Lead Pitch 1.8 mm
Leakage Current 3 µA
Length 7.7 mm
Life (Hours) 4000 hours
Material Polymer
Maximum Operating Temperature 125 °C
Min Operating Temperature -55 °C
Mount PCB, Surface Mount
Number of Pins 8
Packaging Cut Tape
Radiation Hardening No
REACH SVHC No SVHC
Ripple Current 1.4 A
Ripple Current (AC) 1.4 A
RoHS Compliant
Schedule B 8532220020
Termination SMD/SMT
Tolerance 20 %
Voltage 35 V
Voltage Rating 35 V
Voltage Rating (DC) 35 V
Win Source Part Number 1056876-EEHZC1V680XP
Categories Aluminum - Polymer Capacitors
Manufacturer Panasonic
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian EEHZC1V680XP CAD Model

Description

The EEHZC1V680XP is a polymer aluminum capacitor with a capacitance of 68μF and a voltage rating of 35V.

  • Type: Polymer Aluminum Capacitor
  • Capacitance: 68μF
  • Voltage Rating: 35V
  • Tolerance: 20%
  • Leakage Current: 3μA
  • ESR: 35mΩ
  • Ripple Current: 1.4A
  • Applications: Power supplies, DC-DC converters, and other electronic devices
  • Package: Radial
  • Packaging: Cut Tape
  • Lead Pitch: 1.8mm
  • Lead Diameter: 650μm
  • Maximum Operating Temperature: 125°C
  • Minimum Operating Temperature: -55°C
  • Life: 4000 hours
  • RoHS Compliant: Yes
