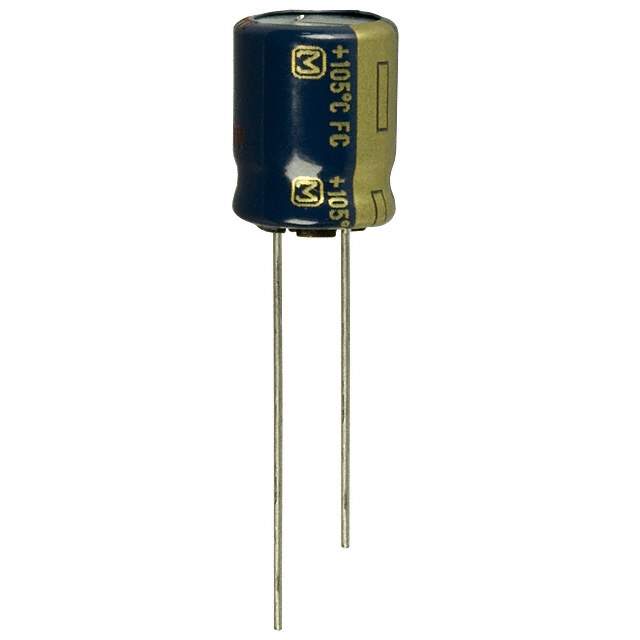

Same model may have multiple batches, images only for reference.

EEU-FC1H101

Part No EEU-FC1H101
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 50V RADIAL / 100 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C
Datasheet
EEU-FC1H101 Datasheet
Sample
ECAD Module ECAD
rohs

Shipping Information

Shipped from HK warehouse
Expected Shipping Date Ask for an estimation

Products specifications

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series FC
Package Bulk
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 399.75 mA @ 120 Hz
Ripple Current @ High Frequency 615 mA @ 100 kHz
Impedance 162 mOhms
Lead Spacing 0.197" (5.00mm)
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
Base Product Number EEU-FC
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names EEUFC1H101,P10323,Q3265728
Standard Package 200
Win Source Part Number 1211335-EEU-FC1H101
Fake Threat In the Open Market 51 pct.
Alternative Parts
(Cross-Reference) 		EEU-FC1H101.; EEUFC1H101;

Description

The FC series of aluminum electrolytic capacitors from Panasonic Electronic Components is rated AEC-Q200. The Win Source Part Number is 1211335-EEU-FC1H101, and the device has a capacitance of 100 µF with a voltage rating of 50V. The tolerance is ±20%, and the device has a lead spacing of 0.197" (5.00mm). The device is polarized and has a ripple current of 399.75 mA @ 120 Hz and 615 mA @ 100 kHz. The device has a fake threat of 51% in the open market, and the temperature range for operating is between -55°C to 105°C.
