Same model may have multiple batches, images only for reference.

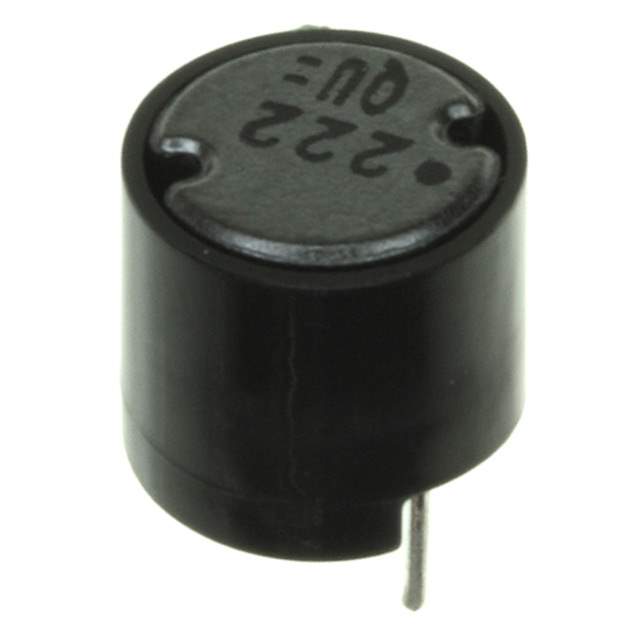

ELC09D331F Real Image
Same model may have multiple batches, images only for reference.

ELC09D331F

Part No ELC09D331F
Manufacturer Panasonic
Catalog Fixed Inductors
Description FIXED IND 330UH 490MA 650MOHM TH
Datasheet
ELC09D331F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 300000712-ELC09D331F
Manufacturer Panasonic Electronic Components
Category Inductors, Coils, Chokes- Fixed Inductors
Series 09D
Package Bulk
Package / Case Radial, Vertical Cylinder
Mounting Type Through Hole
Size / Dimension 0.374" Dia (9.50mm)
Height - Seated (Max) 0.350" (8.90mm)
Base Product Number ELC-09
Product Status Obsolete
Ultra Librarian 3D Model Ultra Librarian ELC09D331F CAD Model

Description

The Panasonic Electronic Components ELC-09 is a fixed inductor that is now obsolete.

  • Manufacturer: Panasonic Electronic Components
  • Series: ELC-09, 09D
  • Inductor Type: Fixed
  • Status: Obsolete
  • Diameter: 0.374 inches (9.50mm)
  • Height: 0.350 inches (8.90mm)
  • Mounting: Through-Hole
  • Packaging: Bulk
  • Package/Case: Radial, Vertical Cylinder
