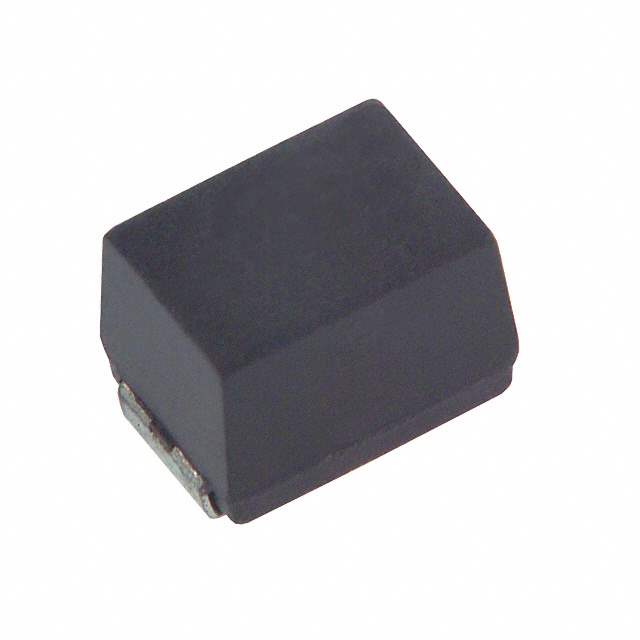

Same model may have multiple batches, images only for reference.

ELJ-PB221KF

Name: ELJ-PB221KF
Brand: Panasonic
SKU: 119192
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ELJ-PB221KF
Manufacturer	Panasonic
Catalog	Fixed Inductors
Description	FIXED IND 220UH 90MA 9 OHM SMD
Datasheet	ELJ-PB221KF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Panasonic Electronic Components
Packaging	Reel - TR
Status	Obsolete(EOL)
Type	Wirewound
Inductance	220μH
Tolerance	±10%
Current Rating	90mA
DC Resistance (DCR)	9 Ohm Max
Q @ Freq	20 @ 796kHz
Frequency - Self Resonant	4MHz
Temperature Range - Operating	-20°C to 85°C
Frequency - Test	796kHz
Mounting	SMD (SMT)
Case / Package	1812
Height - Seated (Max)	0.134" (3.40mm)
Win Source Part Number	129188-ELJ-PB221KF
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian ELJ-PB221KF CAD Model

Alternative Products

Description

ELJ-PB221KF - High Stability Chip Resistor

The ELJ-PB221KF is crafted to meet the demands of modern electronic devices, providing unmatched stability and precision. Suitable for a range of applications, this chip resistor is optimized for minimal error in resistive measurements.

Features and Benefits:
- High stability over varying temperatures
- Low noise performance
- Extended lifespan
- Excellent thermal fatigue resistance
Applications:
- Automotive electronics
- Telecommunication networks
- Power supplies
- Advanced computing systems
Additional Details:
- Thick film resistor element
- Humidity resistant
- Precision tolerance values available
