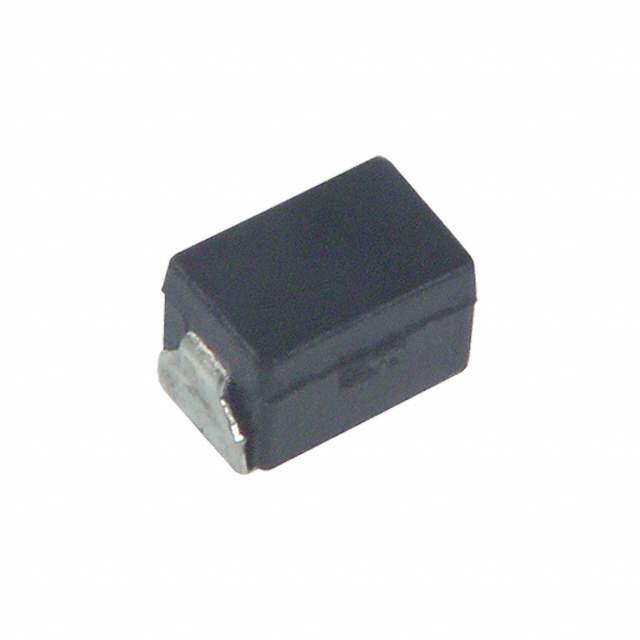

Same model may have multiple batches, images only for reference.

ELJ-PC2R2MF3

Name: ELJ-PC2R2MF3
Brand: Panasonic
SKU: 119205
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	ELJ-PC2R2MF3
Manufacturer	Panasonic
Catalog	Fixed Inductors
Description	FIXED IND 2.2UH 700MA 190 MOHM
Datasheet	ELJ-PC2R2MF3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Panasonic Electronic Components
Packaging	Reel - TR
Status	Obsolete(EOL)
Type	Wirewound
Material - Core	Ferrite
Inductance	2.2μH
Tolerance	±20%
Current Rating	700mA
Current - Saturation	330mA
DC Resistance (DCR)	190 mOhm
Frequency - Self Resonant	95MHz
Temperature Range - Operating	-20°C to 85°C
Frequency - Test	1MHz
Mounting	SMD (SMT)
Case / Package	1008 (2520 Metric)
Height - Seated (Max)	0.071" (1.80mm)
Win Source Part Number	116249-ELJ-PC2R2MF3
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian ELJ-PC2R2MF3 CAD Model

Alternative Products

Description

Designed for high-efficiency systems, the ELJ-PC2R2MF3 inductor provides outstanding performance in demanding electronic applications. It ensures reliability and long service life.

Features and Benefits

Low profile design ideal for compact devices.
Minimal losses improving overall system efficiency.
Exceptional inductance stability under varying load conditions.

Applications

Mobile devices
Networking equipment
Medical devices
Smart home systems

This inductor is designed to meet stringent quality standards, ensuring long-lasting performance in critical applications.
