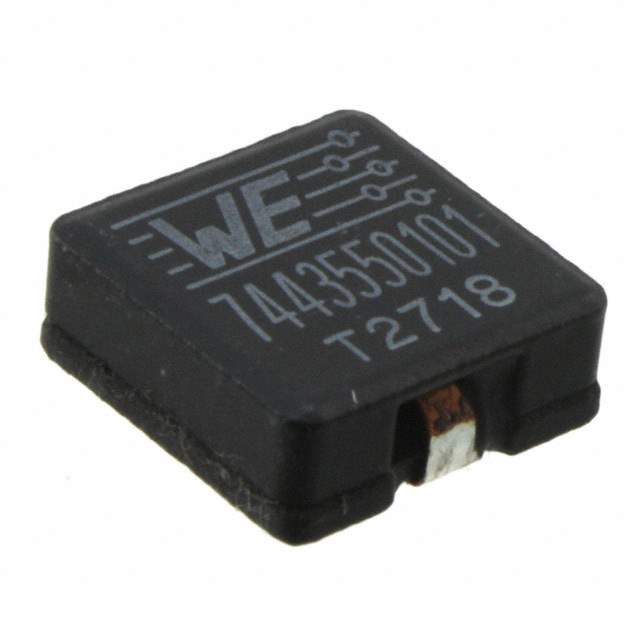

Same model may have multiple batches, images only for reference.

7443550101

Name: 7443550101
Brand: Wurth Electronics Inc
SKU: 1327592
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	7443550101
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 10UH 8.5A 14.1MOHM SMD / 10 µH Shielded Wirewound Inductor 8.5 A 14.1mOhm Nonstandard
Datasheet	7443550101 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Würth Elektronik
Packaging	Reel - TR
Type	Wirewound
Inductance	10 µH
Tolerance	±20%
Current Rating (Amps)	8.5 A
Current - Saturation (Isat)	10A
Shielding	Shielded
DC Resistance (DCR)	14.1mOhm
Frequency - Self Resonant	18MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 155°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	Nonstandard
Supplier Device Package	1350
Size / Dimension	0.512" L x 0.504" W (13.00mm x 12.80mm)
Height - Seated (Max)	0.197" (5.00mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	732-3879-1,732-3879-2,732-3879-6
Standard Package	400
Win Source Part Number	1327592-7443550101
Ultra Librarian 3D Model	Ultra Librarian 7443550101 CAD Model

Alternative Products

Description

The Würth Elektronik 1327592-7443550101 is a fixed inductor component with AEC-Q200 ratings.

Shielding: Shielded
Size/Dimension: 0.512" L x 0.504" W (13.00mm x 12.80mm)
Inductance: 10 µH
Tolerance: ±20%
Current Rating (amps): 8.5 A
Inductance Frequency - Test: 100 kHz
DC Resistance (DCR): 14.1mOhm
Frequency - Self Resonant: 18MHz
Temperature Range - Operating: -40°C ~ 155°C
Compliance: ROHS3 compliant
