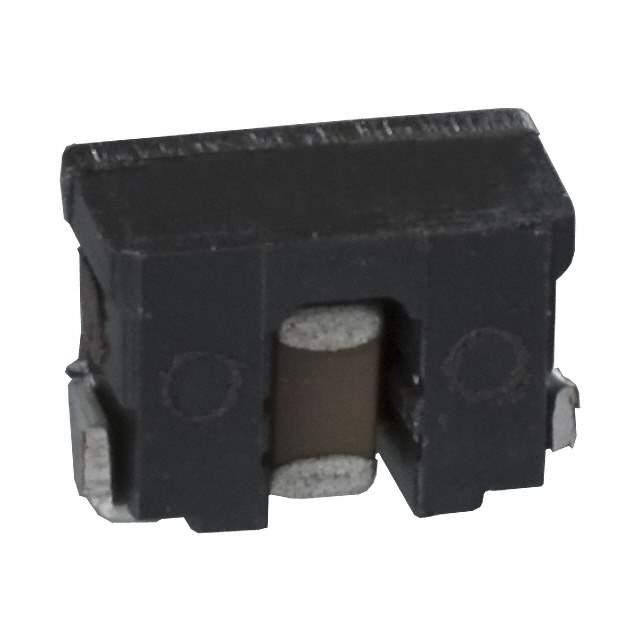

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Filters
Features LC (T-Type) EMI Filter 3rd Order Low Pass 1 Channel C = 2200pF 6 A 1207 (3218 Metric), 3 PC Pad
Manufacturer Panasonic
Series ELKEA
Package Reel - TR
Part Status Obsolete
Operating Temperature Range -20°C ~ 85°C
Mounting Surface Mount
Package 1207 (3218 Metric), 3 PC Pad
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.90.0100
Other Part Number P13167DKR, P13167CT, ELKEA222FA, P13167TR, Q4134448
Quantity per package 2000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 870365-ELK-EA222FA
Ultra Librarian 3D Model Ultra Librarian ELK-EA222FA CAD Model

Description

The Panasonic ELKEA222FA is an LC (T-Type) EMI filter that is designed to provide 3rd order low pass filtering for 1 channel.

  • Filter Type: 3rd Order Low Pass
  • Channel Count: 1
  • Capacitance: 2200pF
  • Current Rating: 6A
  • Mounting: Surface Mount
  • Package Size: 1207 (3218 Metric), 3 PC Pad
  • Operating Temperature Range: -20°C to 85°C
  • Package: Reel of 2000
  • Supply and Demand Status: Limited
