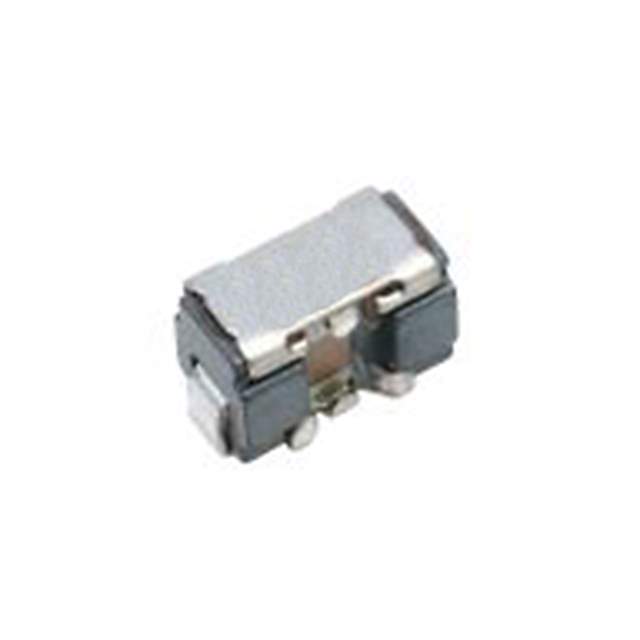

ACH32C-100-T001 TDK Corporation ACH32C-100-T001 Real Image ACH32C-100-T001 label picture
Same model may have multiple batches, images only for reference.
ACH32C-100-T001 TDK Corporation ACH32C-100-T001 Real Image ACH32C-100-T001 label picture
ACH32C-100-T001 TDK Corporation ACH32C-100-T001 Real Image ACH32C-100-T001 label picture
Same model may have multiple batches, images only for reference.

ACH32C-100-T001

Part No ACH32C-100-T001
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(T) 10PF SMD
Datasheet
ACH32C-100-T001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Low Pass
Filter Order 3rd
Technology LC (T-Type)
Number of Channels 1
Attenuation Value -15dB @ 2GHz to 6GHz
Resistance - Channel (Ohms) 0.002
Current 6A
Values C = 10pF
ESD Protection No
Temperature Range - Operating -40°C to 125°C
Applications General Purpose
Voltage Rating 50V
Mounting SMD (SMT)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height 0.091" (2.30mm)
Win Source Part Number 1011595-ACH32C-100-T001
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian ACH32C-100-T001 CAD Model

Description

The TDK Corporation ACH32C-100-T001 is a low pass filter with an attenuation value of -15dB @ 2GHz to 6GHz and a voltage rating of 50V.

  • Filter Type: Low Pass
  • Attenuation: -15dB @ 2GHz to 6GHz
  • Voltage Rating: 50V
  • Cutoff Frequency: -
  • Filter Order: 3rd
  • Filter Type: LC (T-Type)
  • Height: 0.091" (2.30mm)
  • Current Rating: 6A
  • Resistance: 0.002 Ohms
  • Application: General Purpose
  • Mounting Type: SMD (SMT)
  • Packaging: Reel - TR
  • Dimension: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Feature: ESD Protection
  • Channel: Single
  • Capacitance: C = 10pF
