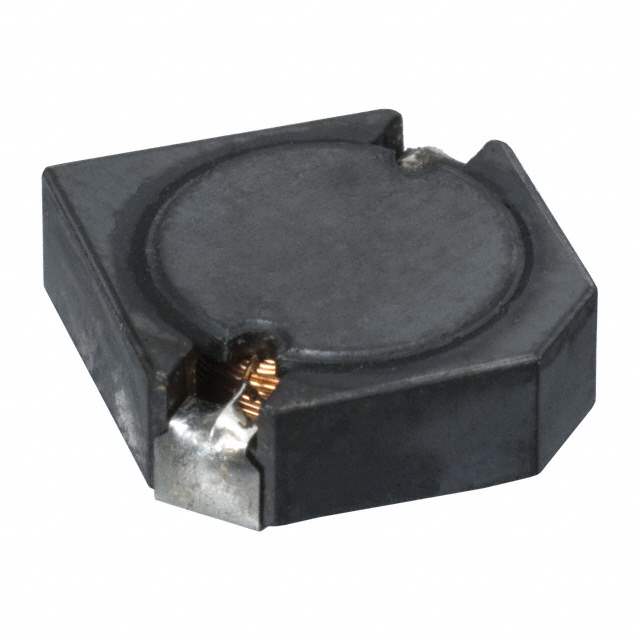

ELL-CTV560M Real Image
Same model may have multiple batches, images only for reference.

ELL-CTV560M

Part No ELL-CTV560M
Manufacturer Panasonic
Catalog Fixed Inductors
Description FIXED IND 56UH 1.6A 87 MOHM SMD
Datasheet
ELL-CTV560M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 56μH
Tolerance ±20%
Current Rating 1.6A
DC Resistance (DCR) 87 mOhm
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.177" (4.50mm)
Win Source Part Number 119052-ELL-CTV560M
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ELL-CTV560M CAD Model

Description

Product Description

The ELL-CTV560M inductor is crafted for applications that demand precision and efficiency. Its design ensures minimal energy losses, maintaining optimal circuit performance.

Features and Benefits

  • High Q factor for superior performance
  • Thermal stability ensures reliability
  • Cost-effective without compromising quality

Applications

  • Industrial power supplies
  • Medical equipment
  • Telecommunication devices
