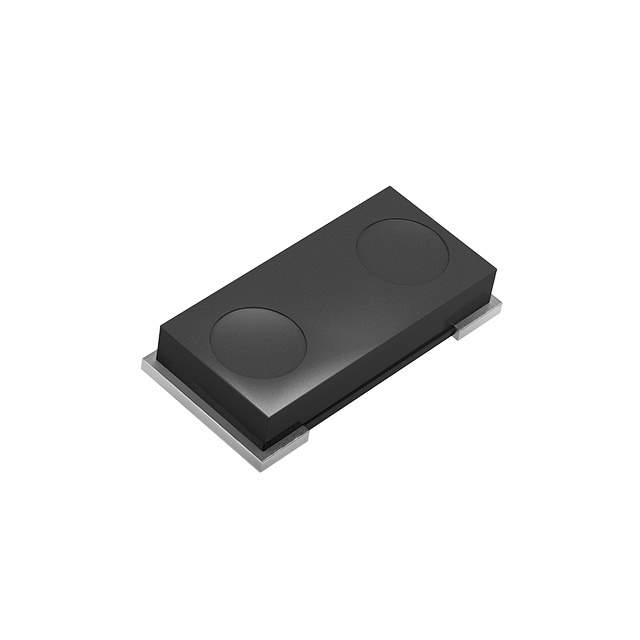

ERJ-MS4SF2M0U Real Image
Same model may have multiple batches, images only for reference.

ERJ-MS4SF2M0U

Part No ERJ-MS4SF2M0U
Manufacturer Panasonic
Catalog Chip Resistor - Surface Mount
Description RES 0.002 OHM 1% 3W 2512
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Estimated Pruduction Lead Time 30 Weeks
Features 2 mOhms ±1% 3W Chip Resistor 2512 (6432 Metric) Automotive AEC-Q200, Current Sense, Moisture Resistant Metal Element
Manufacturer Panasonic
Series ERJ-MS4S
Package Reel - TR
Operating Temperature Range -65°C ~ 170°C
Package 2512 (6432 Metric)
Case / Package 2512
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number P17090TR, ERJMS4SF2M0U, P17090CT, P17090DKR
Quantity per package 2000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 918654-ERJ-MS4SF2M0U
Ultra Librarian 3D Model Ultra Librarian ERJ-MS4SF2M0U CAD Model

Description

This is a Panasonic ERJ-MS4S series chip resistor, which is designed for automotive AEC-Q200 applications.

  • Element: Metal element that makes it moisture-resistant
  • Feature: Current sensing
  • Resistance: 2 mOhms
  • Tolerance: ±1%
  • Power Rating: 3W
  • Operating Temperature Range: -65°C to 170°C
  • Package: 2512 (6432 Metric) reel - TR
  • Category: Resistors
  • ECCN: EAR99
  • Supply and Demand Status: balanced
  • Quantity per Package: 2000
  • MSL Level: 1 (unlimited)
  • Estimated Production Lead Time: 30 weeks
  • REACH: REACH unaffected
  • HTSUS: 8533.21.0030
