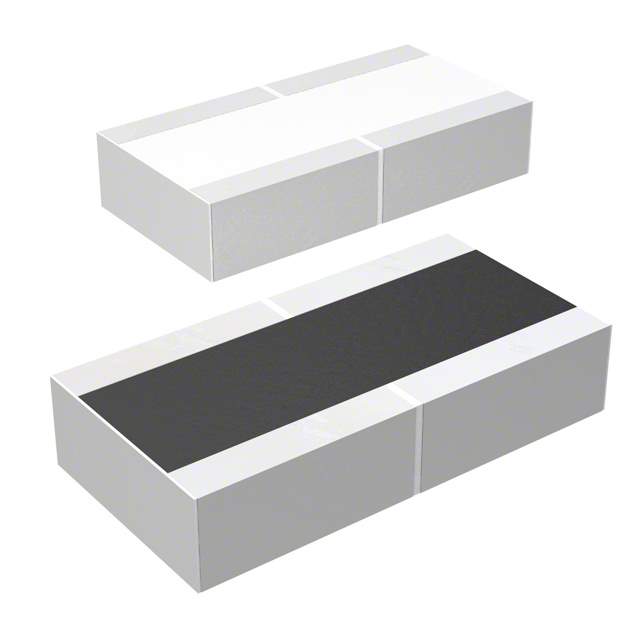

ERJB2AF682V Real Image
Same model may have multiple batches, images only for reference.

ERJB2AF682V

Part No ERJB2AF682V
Manufacturer Panasonic
Catalog Chip Resistor - Surface Mount
Description Res Thick Film 0612 6.8K Ohm 1% 3/4W ±100ppm/°C Molded SMD Punched Carrier T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package 1206
Composition Thick Film
Contact Plating Tin
Maximum Operating Temperature 155 °C
Min Operating Temperature -55 °C
Number of Pins 2
Packaging Cut Tape
Power Rating 500 mW
Radiation Hardening No
REACH SVHC No SVHC
Resistance 6.8 kΩ
RoHS Compliant
Temperature Coefficient 100 ppm/°C
Tolerance 1 %
Voltage Rating 200 V
Voltage Rating (DC) 200 V
Width 3.2 mm
Win Source Part Number 1057690-ERJB2AF682V
Categories Chip Resistor - Surface Mount
Manufacturer Panasonic
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian ERJB2AF682V CAD Model

Description

The Panasonic ERJB2AF682V is a chip resistor with a resistance of 6.8 kΩ and a power rating of 500 mW.

  • Resistance: 6.8 kΩ
  • Power Rating: 500 mW
  • Voltage Rating: 200 V
  • Tolerance: 1%
  • Composition: Thick Film
  • Temperature Coefficient: 100 ppm/°C
  • Mounting Technology: SMD (SMT)
  • Package: 1206 case
  • Width: 3.2 mm
  • Number of Pins: 2
  • RoHS Compliant: Yes
  • Radiation Hardening: No
  • Maximum Operating Temperature: 155 °C
  • Minimum Operating Temperature: -55 °C
  • Popularity: Low
  • Supply and Demand: Shortage
  • Alternative Parts: CRCW12066K80FKEAHP, ERJ8ENF6801V, CRCW12066K80FKEA, RC1206FR-076K8L, AC1206FR-076K8L, and ERJ-S08F6801VERJB2AF682V
