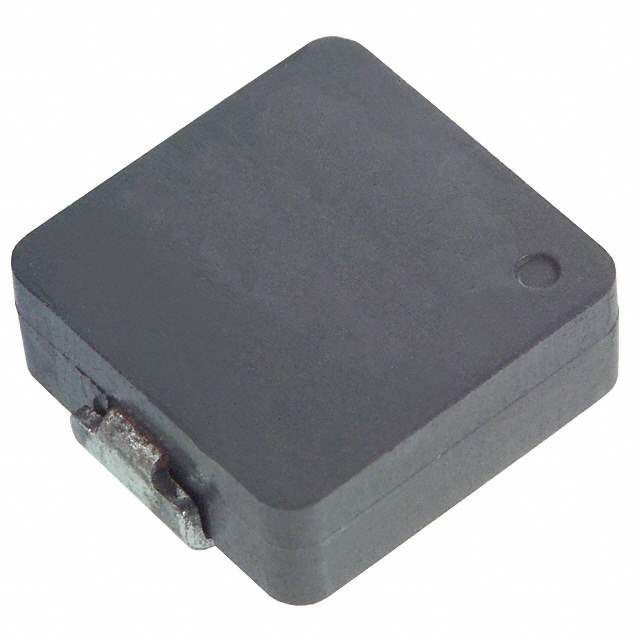

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Metal Composite
Inductance 470nH
Tolerance ±20%
Current Rating 25A
DC Resistance (DCR) 1.1 mOhm
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.157" (4.00mm)
Win Source Part Number 203957-ETQP4LR45XFC
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ETQP4LR45XFC CAD Model

Description

ETQP4LR45XFC

The ETQP4LR45XFC is engineered to meet the demands of modern power electronics. With its robust features, it supports a wide range of applications, offering engineers both flexibility and performance.

  • Applications:
    • Energy storage systems
    • Power distribution units
    • LED lighting systems
    • Renewable energy solutions
    • E-mobility projects
  • Features and Benefits:
    • Efficient inductance to size ratio
    • Temperature resilience for high-reliability applications
    • Low core losses at high frequencies
    • Environmentally friendly construction
    • Cost-effective solution without compromising on quality
  • Additional Details:
    • Inductance: 45 μH
    • Designed for minimal acoustic noise
    • Heavy-duty terminals for secure connections
