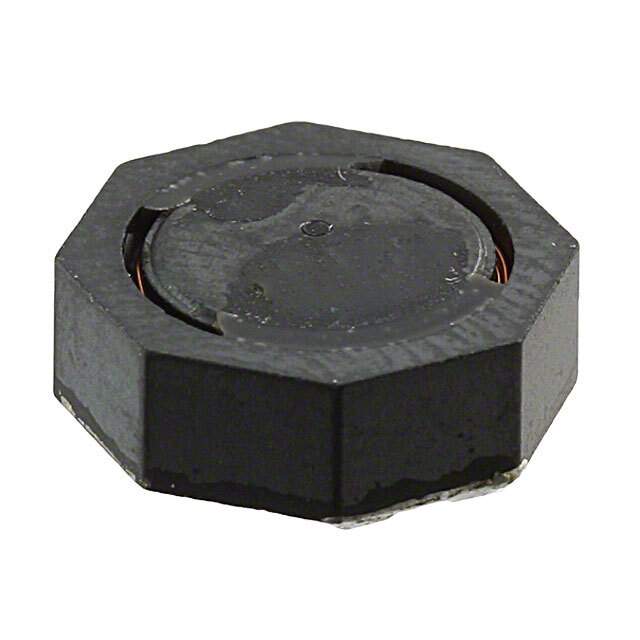

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Würth Elektronik
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 680 µH
Tolerance ±30%
Current Rating (Amps) 460 mA
Current - Saturation (Isat) 500mA
Shielding Shielded
DC Resistance (DCR) 2.15Ohm Max
Frequency - Self Resonant 2MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max) 0.161" (4.10mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 732-4097-2,732-4097-1,732-4097-6
Standard Package 800
Win Source Part Number 1327684-744066681
Ultra Librarian 3D Model Ultra Librarian 744066681 CAD Model

Description

The Würth Elektronik Fixed Inductors are a popular choice for inductors, coils, and chokes.

  • Family: 744066681
  • Manufacturer: Würth Elektronik
  • Inductance: 680μH
  • Current Rating: 460mA
