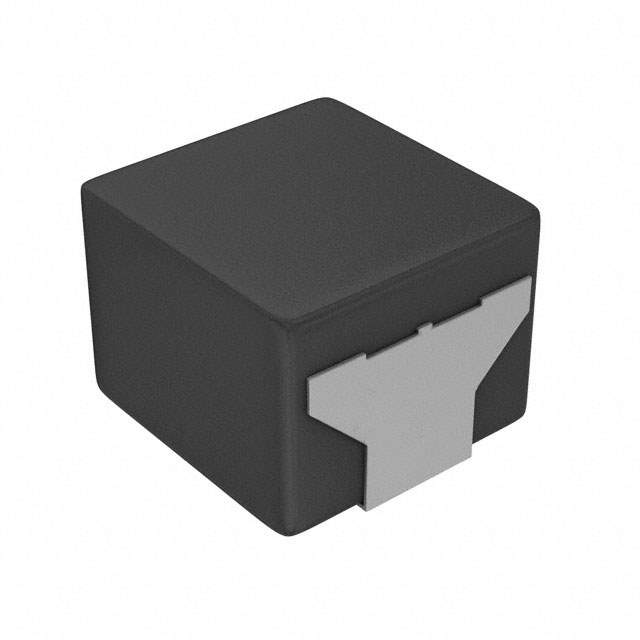

The ETQP5M4R7YFM is a wound, metal composite type power inductor manufactured by Panasonic. Power inductors are used in DC-DC converters and power supply circuits to store energy and filter out noise. They are essential components in various electronic devices that require efficient power management.

Applications:

• DC-DC Converters: Used in step-up (boost), step-down (buck), and inverting converters to efficiently convert voltage levels.
• Power Supplies: Found in various types of power supplies, including AC-DC adapters, battery chargers, and LED drivers.
• Filtering Circuits: Used as filter inductors to remove unwanted noise and ripple from power lines.
• Voltage Regulators: Provides stable voltage regulation in electronic devices.
• Automotive Applications: Suitable for use in automotive electronic systems due to their robustness and reliability.

Features:

• Metal Composite Core: Provides high saturation current and low core loss.
• Wound Construction: Ensures high efficiency and low DC resistance (DCR).
• Shielded Structure: Reduces electromagnetic interference (EMI).
• High Current Capability: Can handle high current levels without significant performance degradation.
• Compact Size: Allows for space-saving designs on PCBs.
• RoHS Compliant: Compliant with Restriction of Hazardous Substances directive.

Benefits:

• High Efficiency: Minimizes power loss, resulting in more efficient power conversion.
• Low EMI: Reduces electromagnetic interference, improving the overall system performance.
• Stable Performance: Provides consistent performance over a wide range of operating conditions.
• Robust Design: Withstands high temperatures and vibrations, ensuring reliability in harsh environments.
• Space Saving: Compact size allows for smaller and more densely packed circuit designs.

Additional Details:

The ETQP5M4R7YFM inductor has an inductance value of 4.7 µH. Its saturation current (Isat) and rated current (Irms) are important parameters for determining its suitability for a specific application. The low DCR contributes to its high efficiency. The shielded construction is crucial for minimizing electromagnetic interference, which is a common concern in densely packed electronic devices. The inductor is suitable for reflow soldering processes used in automated PCB assembly.

The specific dimensions and electrical characteristics can be found in the datasheet. The datasheet also provides information on the inductor's self-resonant frequency (SRF) and Q factor, which are important for high-frequency applications.
