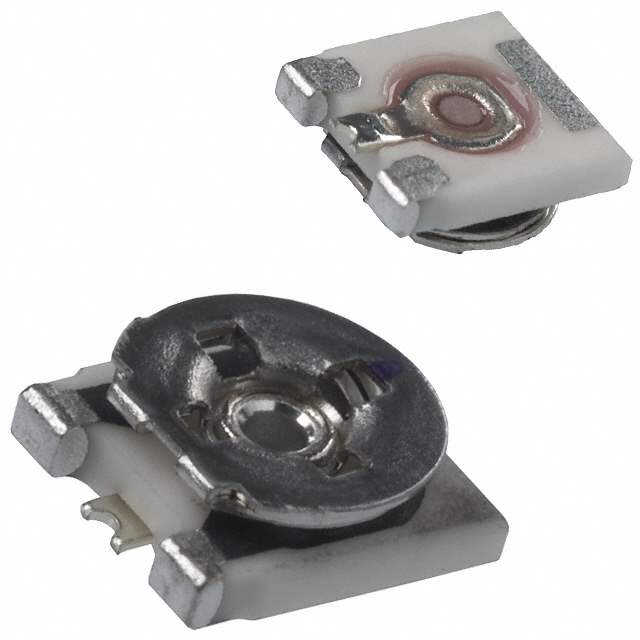

EVM-1ESX30B13

Part No EVM-1ESX30B13
Manufacturer Panasonic
Catalog Trimmer Potentiometers
Description TRIMMER 1K OHM 0.2W SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Resistance (Ohms) 1k
Power (Watts) 0.2W, 1/5W
Tolerance ±25%
Temperature Coefficient ±250ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting SMD (SMT)
Termination Style J Lead
Dimension Rectangular - 0.165" x 0.150" Face x 0.055" H (4.20mm x 3.80mm x 1.40mm)
Win Source Part Number 106426-EVM-1ESX30B13
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian EVM-1ESX30B13 CAD Model

Description

Description

The EVM-1ESX30B13 potentiometer is a highly efficient component tailored for systems that require precise and repeatable adjustments. Its innovative design allows it to seamlessly integrate into diverse applications.

Features and Benefits

  • Exceptional repeatability and accuracy
  • Corrosion-resistant housing
  • Smooth rotational feel
  • Long operational life

Applications

  • Environmental monitoring instruments
  • Automotive tuning and adjustments
  • Custom electronics projects
  • Precision laboratory equipment

Whether you're developing new technology or maintaining existing systems, the EVM-1ESX30B13 provides the reliability and performance required for advanced electronic control applications.
