Same model may have multiple batches, images only for reference.

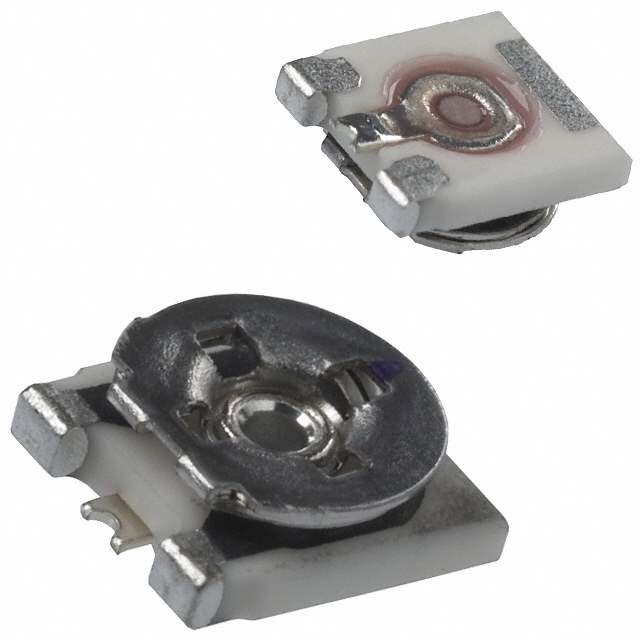

EVM-1ESX30B16 Real Image
Same model may have multiple batches, images only for reference.

EVM-1ESX30B16

Part No EVM-1ESX30B16
Manufacturer Panasonic
Catalog Trimmer Potentiometers
Description TRIMMER 1M OHM 0.2W SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Resistance (Ohms) 1M
Power (Watts) 0.2W, 1/5W
Tolerance ±25%
Temperature Coefficient ±250ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting SMD (SMT)
Termination Style J Lead
Dimension Rectangular - 0.165" x 0.150" Face x 0.055" H (4.20mm x 3.80mm x 1.40mm)
Win Source Part Number 103863-EVM-1ESX30B16
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian EVM-1ESX30B16 CAD Model

Description

Product Overview

Unleash potential with the EVM-1ESX30B16, a component that provides precision and reliability for diverse technological applications.

Features and Benefits

  • Precision Engineering: Offers accuracy and precise control in various environments.
  • Robust Design: Built to withstand challenging conditions and environments.
  • Easy Integration: Simplifies the process of embedding into existing systems.

Applications

  • Medical Devices
  • Aerospace Technology
  • Smart Grid Solutions

Providing a competitive edge, this component is favored by industries seeking to push the boundaries of innovation.
