Same model may have multiple batches, images only for reference.

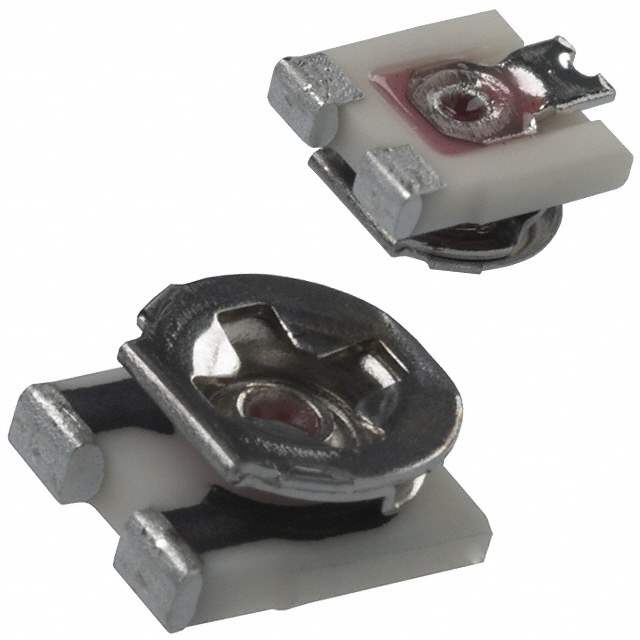

EVM-3YSX50B16 Real Image
Same model may have multiple batches, images only for reference.

EVM-3YSX50B16

Part No EVM-3YSX50B16
Manufacturer Panasonic
Catalog Trimmer Potentiometers
Description TRIMMER 1M OHM 0.15W SMD
Datasheet
EVM-3YSX50B16 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Resistance (Ohms) 1M
Power (Watts) 0.15W
Tolerance ±25%
Temperature Coefficient ±250ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting SMD (SMT)
Termination Style J Lead
Dimension Rectangular - 0.136" x 0.122" Face x 0.061" H (3.45mm x 3.10mm x 1.55mm)
Win Source Part Number 118097-EVM-3YSX50B16
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian EVM-3YSX50B16 CAD Model

Description

EVM-3YSX50B16

The EVM-3YSX50B16 is a high-performance trimmer potentiometer, suitable for various precise electronic applications. Designed with reliability and precision in mind, this component is ideal for fine-tuning and calibration.

Features and Benefits:

  • Resistance Value: Precise 5k Ohm resistance for accurate adjustment.
  • Stability: Excellent thermal stability ensuring minimal drift over time.
  • Compact Size: Small form factor for ease of integration into compact circuit designs.
  • Durability: High-quality construction for long-term reliability.

Applications:

  • Audio equipment calibration
  • Signal processing adjustments
  • Sensor zero and span adjustments
  • Precision amplifiers
