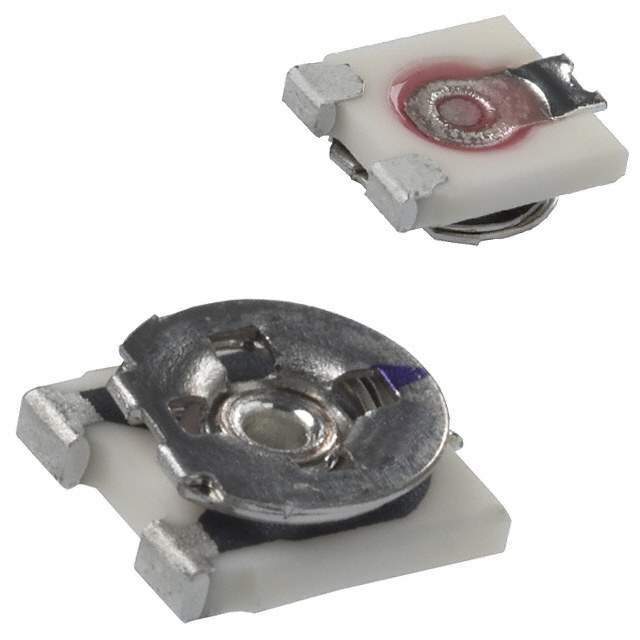

EVM1DSX30B15 Real Image
Same model may have multiple batches, images only for reference.

EVM1DSX30B15

Part No EVM1DSX30B15
Manufacturer Panasonic
Catalog Potentiometers, Variable Resistors
Description Res Cermet Trimmer 100K Ohm 25% 1/5W 1Turn (3.8 X 4.5 X 1.4mm) Foot Print SMD Carrier T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Silver
Composition Cermet
Depth 4.5 mm
Height 1.397 mm
Lead Free Lead Free
Length 3.8 mm
Max Operating Temperature 100 °C
Max Power Dissipation 200 mW
Military Standard Not
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Turns 1
Packaging Cut Tape
Power Rating 200 mW
Radiation Hardening No
REACH SVHC No SVHC
Resistance 100 kΩ
RoHS Compliant
Temperature Coefficient 250 ppm/°C
Termination Foot Print
Tolerance 25 %
Weight 58 mg
Width 3.1 mm
Win Source Part Number 1186325-EVM1DSX30B15
Categories Potentiometers,Variable Resistors
Manufacturer Panasonic
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian EVM1DSX30B15 CAD Model

Description

The EVM1DSX30B15 is a surface mount potentiometer manufactured by Panasonic.

  • Resistance: 100kΩ
  • Power Rating: 200mW
  • Tolerance: 25%
  • Temperature Coefficient: 250ppm/°C
  • Application: potentiometers and variable resistors
  • Packaging: cut tape packaging
  • RoHS Compliant: yes
  • Alternative: EVM1DSX30B15
