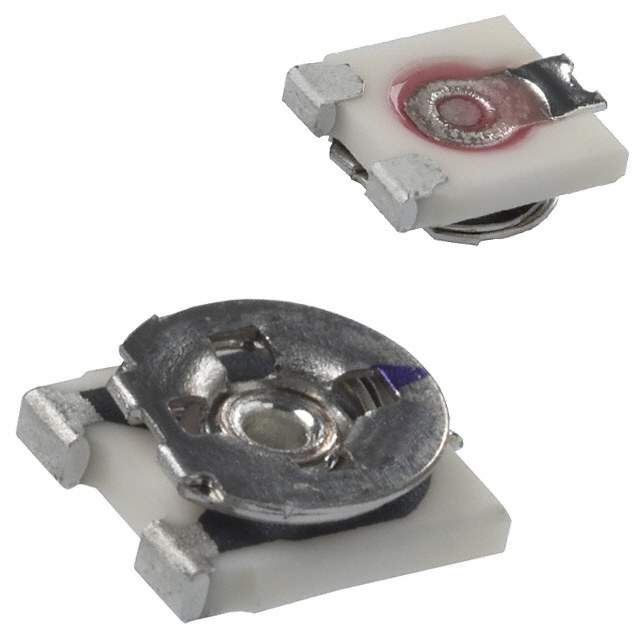

The Panasonic EVM1USX30B53 is a surface mount trimmer potentiometer designed for precise circuit adjustments. It is part of Panasonic's EVM1 series, known for its compact size and reliable performance in various electronic applications. This potentiometer allows for fine-tuning of resistance within a circuit, making it crucial for calibration and optimization purposes.

Applications

• Calibration of electronic circuits
• Volume control in audio devices
• Brightness control in displays
• Frequency adjustment in oscillators
• Sensor calibration in measurement equipment

Features

• Surface Mount Device (SMD)
• Compact size for space-saving designs
• Single-turn adjustment
• Carbon resistive element
• High stability and reliability

Benefits

• Precise resistance adjustment
• Easy integration into automated assembly processes
• Long-term stability ensures consistent performance
• Small footprint allows for high-density circuit designs
• Cost-effective solution for calibration needs

Additional Details

The EVM1USX30B53 has a resistance value of 5k Ohms. It is designed for reflow soldering and is supplied on tape and reel for automated assembly. The potentiometer is housed in a robust package to withstand harsh environmental conditions, and it has excellent resistance to humidity and temperature variations. The carbon resistive element provides good linearity and stability over its operating life.

This component is used extensively in consumer electronics, industrial controls, and automotive applications, where accurate and reliable resistance adjustment is critical. Its small size and surface mount design make it ideal for modern, compact electronic devices.
