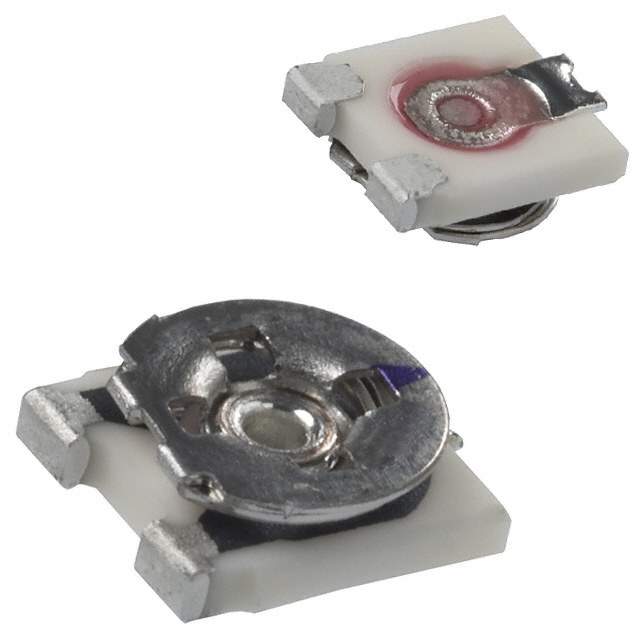

The EVM1USX30B22 is a surface-mount trimmer potentiometer manufactured by Panasonic. It's designed for precise electrical adjustments in a variety of electronic circuits. This compact trimmer offers stable performance and reliable adjustment, making it suitable for calibration and fine-tuning applications.

Applications

• Calibration of sensors
• Adjusting voltage levels in circuits
• Setting frequency in oscillators
• Fine-tuning audio equipment
• Control circuits in consumer electronics

Features

• Surface Mount Device (SMD): Designed for automated assembly.
• Compact Size: Small footprint saves board space.
• Top Adjust: Easy to access adjustment screw.
• Carbon Composition Element: Offers a good balance of performance and cost.
• Single-Turn Adjustment: Allows for quick and precise settings.
• 2kΩ Resistance: Standard resistance value for many applications.

Benefits

• Precise Adjustment: Allows for accurate calibration and fine-tuning.
• Reduced Board Space: Compact size enables dense circuit designs.
• Simplified Assembly: Surface mount design streamlines the assembly process.
• Cost-Effective Solution: Carbon composition element provides a cost-effective solution.
• Improved Circuit Performance: Fine-tuning improves the performance of electronic circuits.

Additional Details

The EVM1USX30B22 has a resistance tolerance that indicates the accuracy of the specified resistance value. The power rating specifies the maximum power that the trimmer can handle without damage. The operating temperature range is typically from -10°C to +70°C. The trimmer is supplied on tape and reel for automated assembly. It is RoHS compliant. The adjustment screw is designed for easy access and precise adjustment. The trimmer is commonly used in a variety of applications, including consumer electronics, industrial equipment, and automotive electronics. It can be adjusted using a small screwdriver. Proper handling and storage are recommended to maintain its performance and reliability. The single-turn adjustment allows for quick and easy setting of the desired resistance value. The carbon composition element provides a good balance of performance and cost. The trimmer is designed to be reliable and durable, even under demanding conditions. The part marking on the device allows for easy identification.
