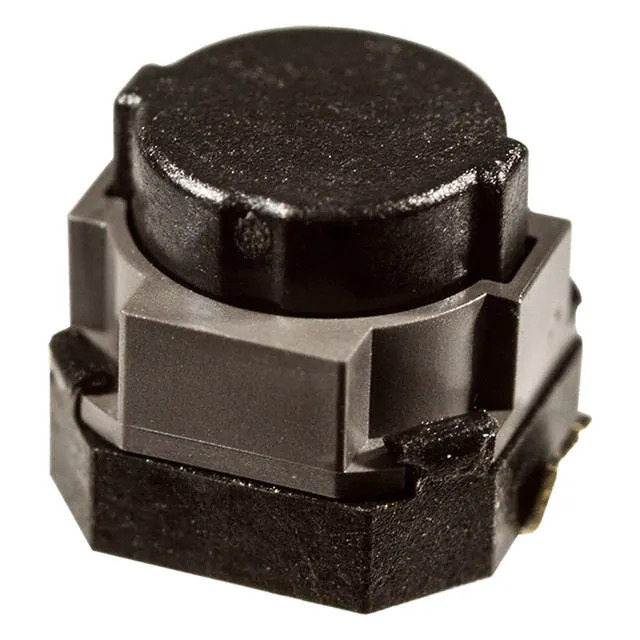

EVP-ASAC1A Panasonic
Same model may have multiple batches, images only for reference.

EVP-ASAC1A

Part No EVP-ASAC1A
Manufacturer Panasonic
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 12V / Tactile Switch SPST-NO Top Actuated Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr Panasonic Electronic Components
Series EVPAS
Package Tape & Reel
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Round Button
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 5.00mm
Actuator Length, Right Angle -
Actuator Orientation Top Actuated
Termination Style J Lead
Outline 6.10mm x 6.00mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Operating Force 160gf
Ingress Protection -
Features -
Temperature Range - Operating -40°C ~ 90°C
Actuator Material -
Switch Travel 1.30mm
Mechanical Life 100,000 Cycles
Base Product Number EVP-AS
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1376512-EVP-ASAC1A
Ultra Librarian 3D Model Ultra Librarian EVP-ASAC1A CAD Model

Description

The EVP-ASAC1A is a tactile switch from Panasonic Electronic Components.

  • Contact Rating: 0.05A @ 12VDC
  • Circuit: Single-Pole, Single-Throw Normally Open
  • Actuator: Round Button
  • Mounting Type: Surface Mountable
  • Mechanical Life: 100,000 Cycles
  • Operating Force: 160gf
  • Status: Active
  • Series: EVPAS
