Products specifications

Manufacturer Panasonic
Win Source Part Number 1172954-EVPAFFB65
Manufacturer Homepage www.panasonic.com/industrial/
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian EVPAFFB65 CAD Model

Description

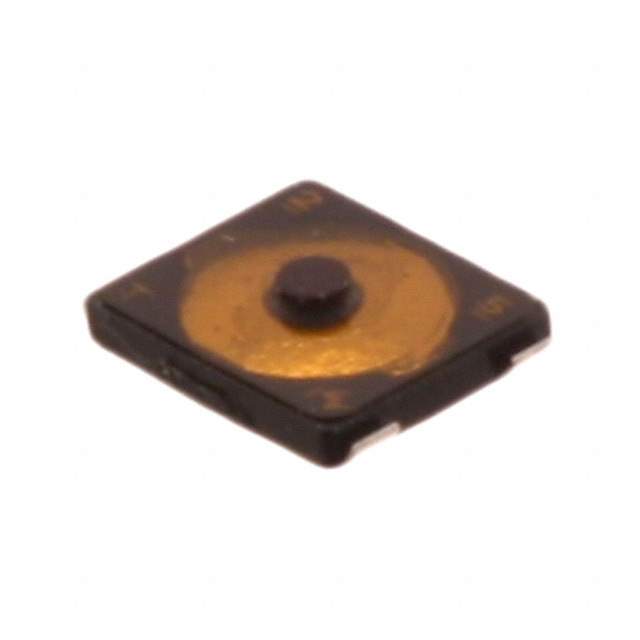

The EVPAFFB65 is a tactile switch manufactured by Panasonic. Tactile switches are momentary switches that provide a distinct tactile feedback when pressed, indicating that the switch has been activated. They are commonly used in a wide range of electronic devices for user input.

Applications:

  • Consumer Electronics (e.g., remote controls, gaming consoles)
  • Industrial Control Panels
  • Medical Equipment
  • Automotive Electronics
  • Instrumentation
  • Computer Peripherals (e.g., keyboards, mice)

Features:

  • Tactile Feedback: Provides a distinct tactile click for user confirmation.
  • Compact Size: Small footprint for high-density PCB layouts.
  • Long Life: Designed for a high number of operating cycles.
  • Surface Mount Technology (SMT): Suitable for automated assembly processes.
  • Low Profile: Minimal height above the PCB.
  • Reliable Contact: Ensures consistent and reliable electrical contact.

Benefits:

  • User-Friendly Interface: Tactile feedback enhances the user experience.
  • Space Saving: Compact size allows for integration into small devices.
  • Long-Term Reliability: High operating life reduces the need for frequent replacements.
  • Cost-Effective: Provides a cost-effective solution for user input.
  • Automated Assembly: SMT compatibility simplifies the manufacturing process.

The EVPAFFB65 tactile switch from Panasonic provides a reliable and user-friendly input solution for a wide variety of electronic devices. Its compact size, tactile feedback, and long operating life make it an ideal choice for applications requiring a durable and efficient momentary switch. The surface mount technology allows for easy integration into automated assembly lines, reducing manufacturing costs and increasing production efficiency.
