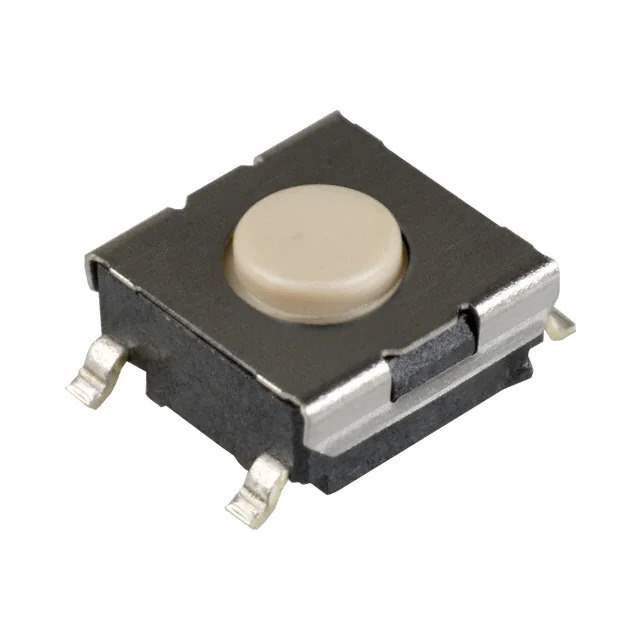

B3FS-1002P Real Image
Same model may have multiple batches, images only for reference.

B3FS-1002P

Part No B3FS-1002P
Manufacturer Omron
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 24V / Tactile Switch SPST-NO Top Actuated Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr Omron
Series B3FS
Package Tape & Reel
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 24VDC
Actuator Type Standard
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 3.10mm
Actuator Orientation Top Actuated
Termination Style Gull Wing
Outline 6.30mm x 6.00mm
Illumination Non-Illuminated
Operating Force 150gf
Temperature Range - Operating -25°C ~ 70°C
Switch Travel 0.25mm
Mechanical Life 300,000 Cycles
Base Product Number B3FS
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 568071-B3FS-1002P
Ultra Librarian 3D Model Ultra Librarian B3FS-1002P CAD Model

Description

The B3FS-1002P is a tactile switch from Omron, a leading manufacturer of electronic components. This switch is part of the B3FS series and is designed for surface mount applications.

  • Series: B3FS
  • Mounting Type: Surface Mount
  • Termination Style: Gull Wing
  • Outline: 6.30mm x 6.00mm
  • Circuit Configuration: SPST-NO
  • Switch Function: Off-Mom
  • Switch Travel: 0.25mm
  • Operating Force: 150gf
  • Mechanical Life: 300,000 cycles
  • Operating Temperature Range: -25°C to 70°C
  • Manufacturer: Omron
