Same model may have multiple batches, images only for reference.

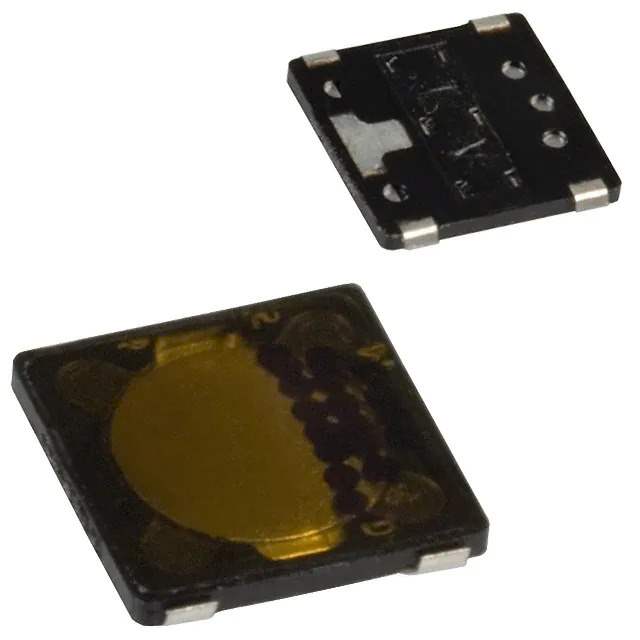

EVQ-P6PB35 Real Image
Same model may have multiple batches, images only for reference.

EVQ-P6PB35

Part No EVQ-P6PB35
Manufacturer Panasonic
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.02A 15V / Tactile Switch SPST-NO Top Actuated Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr Panasonic
Series EVQP6
Package Tape & Reel
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.02A @ 15VDC
Actuator Type Standard
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 0.35mm
Actuator Orientation Top Actuated
Termination Style J Lead
Outline 4.10mm x 4.10mm
Illumination Non-Illuminated
Operating Force 240gf
Ingress Protection Dust Proof
Temperature Range - Operating -20°C ~ 70°C
Switch Travel 0.20mm
Mechanical Life 500,000 Cycles
Base Product Number EVQ-P6
Standard Package 10,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 918775-EVQ-P6PB35
Ultra Librarian 3D Model Ultra Librarian EVQ-P6PB35 CAD Model

Description

The EVQP6 series of tactile switches from Panasonic are compact and reliable switches suitable for a variety of applications.

  • Switch Type: SPST-NO switches
  • Switch Travel: 0.20mm
  • Operating Force: 240gf
  • Contact Rating: 0.02A @ 15VDC
  • Actuation: Top actuated
  • Outline: 4.10mm x 4.10mm
  • Features: Dust-proof
  • Mechanical Life: 500,000 cycles
  • Mounting: Surface mountable
  • Operating Temperature Range: -20°C to 70°C
