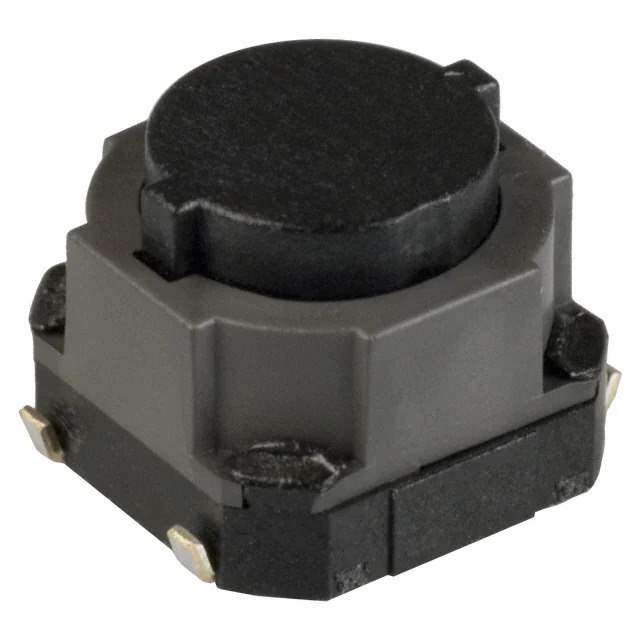

EVQ-Q1D06M Real Image
Same model may have multiple batches, images only for reference.

EVQ-Q1D06M

Part No EVQ-Q1D06M
Manufacturer Panasonic
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 12V / Tactile Switch SPST-NO Top Actuated Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr Panasonic
Series EVQQ1
Package Tape & Reel
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Standard
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 6.50mm
Actuator Orientation Top Actuated
Termination Style J Lead
Outline 9.90mm x 8.00mm
Illumination Non-Illuminated
Operating Force 400gf
Ingress Protection Dust Proof
Temperature Range - Operating -40°C ~ 85°C
Switch Travel 1.00mm
Mechanical Life 100,000 Cycles
Base Product Number EVQ-Q1
Standard Package 1,000 pcs
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 849691-EVQ-Q1D06M
Ultra Librarian 3D Model Ultra Librarian EVQ-Q1D06M CAD Model

Description

The EVQ-Q1D06M is a tactile switch from Panasonic's EVQQ1 series. It features a J lead termination style and has a dustproof ingress protection.

  • Termination Style: J Lead
  • Ingress Protection: Dustproof
  • Circuit Configuration: SPST-NO (single-pole, single-throw normally open)
  • Switch Function: Off-Mom (momentary)
  • Actuator Type: Standard
  • Switch Travel: 1.00mm
  • Contact Rating: 0.05A @ 12VDC
  • Operating Force: 400gf
  • Mechanical Life: 100,000 cycles
  • Temperature Range: -40°C to 85°C
