Same model may have multiple batches, images only for reference.

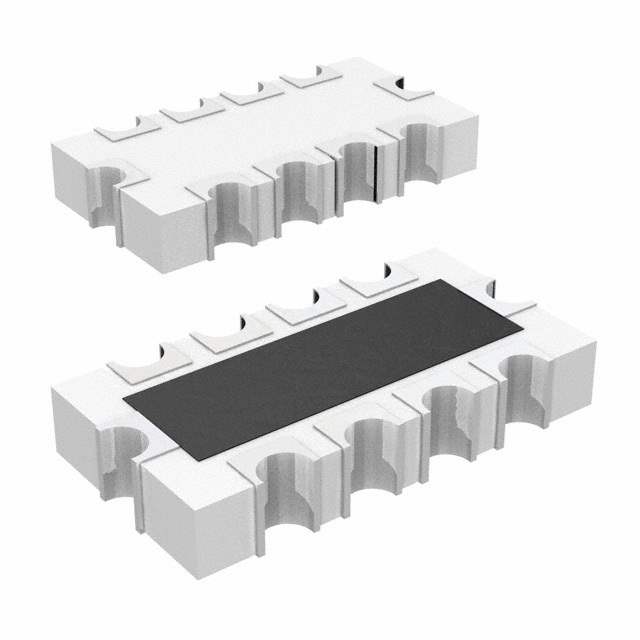

EXB-E10C560J Real Image
Same model may have multiple batches, images only for reference.

EXB-E10C560J

Part No EXB-E10C560J
Manufacturer Panasonic
Catalog Resistor Networks, Arrays
Description RES ARRAY 8 RES 56 OHM 1608
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Circuit Type Bussed
Resistance (Ohms) 56
Tolerance ±5%
Number of Resistors 8
Number of Pins 10
Power Per Element 62.5mW
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Case / Package 1608
Height - Seated (Max) 0.026" (0.65mm)
Win Source Part Number 098315-EXB-E10C560J
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 4k pcs
Ultra Librarian 3D Model Ultra Librarian EXB-E10C560J CAD Model

Description

EXB-E10C560J High Reliability Resistor

The EXB-E10C560J offers high reliability and performance, making it apt for demanding electronic circuits. Its robust design ensures long-lasting durability in various environments.

  • Applications/Projects:
    • Automotive Electronics
    • Medical Devices
    • Power Supplies
    • Aerospace Controls
  • Features and Benefits:
    • Excellent Temperature Stability
    • Resistance Value of 56 Ohms
    • Small Footprint for Space-Constrained Designs
  • Additional Details:
    • Tolerance: ±5%
    • Power Rating: 1/10W
    • Package: 0805 Surface Mount
