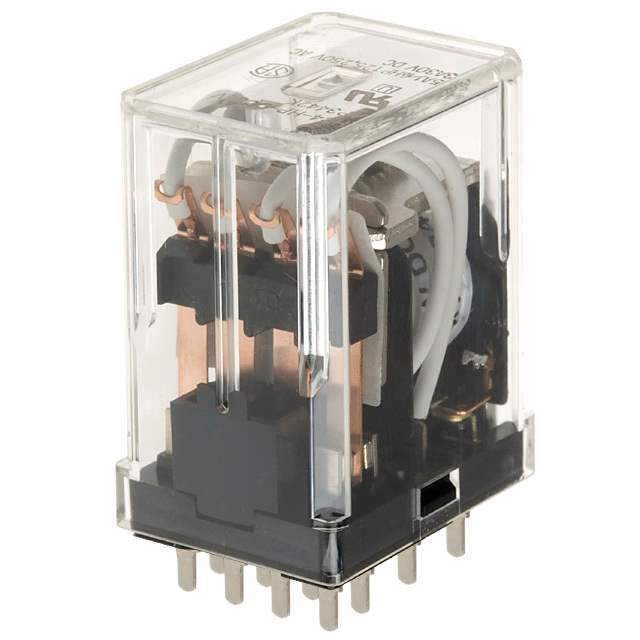

HC2-HP-DC24V-F Real Image
Same model may have multiple batches, images only for reference.

HC2-HP-DC24V-F

Part No HC2-HP-DC24V-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 7A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 37mA
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 7A
Switching Voltage 250VAC - Max
Turn On Voltage (Max) 19.2 VDC
Turn Off Voltage (Min) 2.4 VDC
Operate Time 20ms
Release Time 20ms
Mounting Through Hole
Termination Style PC Pin
Coil Power 900 mW
Coil Resistance 650 Ohms
Temperature Range - Operating -50°C to 70°C
Win Source Part Number 040432-HC2-HP-DC24V-F
Popularity Medium
Supply and Demand Status Limited
Quantity per package 20
Ultra Librarian 3D Model Ultra Librarian HC2-HP-DC24V-F CAD Model

Description

The Panasonic Electric Works HC2-HP-DC24V-F is a DPDT (2 Form C) general purpose relay with a coil voltage of 24VDC. It has a contact rating (current) of 7A and a switching voltage of 250VAC - Max. It has a turn on voltage (Max) of 19.2VDC and a turn off voltage (Min) of 2.4VDC. It is packaged in bulk and mounted through hole with a coil resistance of 650 Ohms and a coil current of 37mA. It has a coil power of 900mW and can operate within a temperature range of -50°C to 70°C. The supply and demand status of this product is limited.
