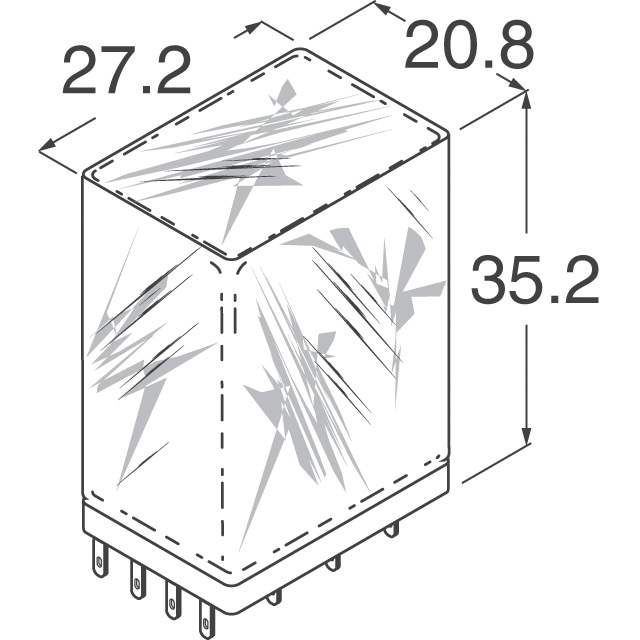

HC2-HTM-AC240V-F Real Image
Same model may have multiple batches, images only for reference.

HC2-HTM-AC240V-F

Part No HC2-HTM-AC240V-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 7A 240V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 5mA
Coil Voltage 240VAC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 7A
Switching Voltage 250VAC - Max
Turn On Voltage (Max) 192 VAC
Turn Off Voltage (Min) 72 VAC
Operate Time 20ms
Release Time 20ms
Mounting Chassis Mount
Termination Style Plug In
Coil Power 1.2 VA
Temperature Range - Operating -50°C to 70°C
Win Source Part Number 001499-HC2-HTM-AC240V-F
Popularity Medium
Supply and Demand Status Limited
Quantity per package 20
Ultra Librarian 3D Model Ultra Librarian HC2-HTM-AC240V-F CAD Model

Description

The Panasonic Electric Works HC2-HTM-AC240V-F is a DPDT (2 Form C) General Purpose Relay. It has a coil voltage of 240VAC and a coil current of 5mA. The contact rating (current) is 7A and the switching voltage is 250VAC - Max. The turn on voltage (Max) is 192 VAC and the turn off voltage (Min) is 72 VAC. The operate time and release time are both 20ms. The relay is mounted using chassis mount technology and has a plug-in termination style. It operates in a temperature range of -50°C to 70°C. This relay is ideal for use in Relays.
