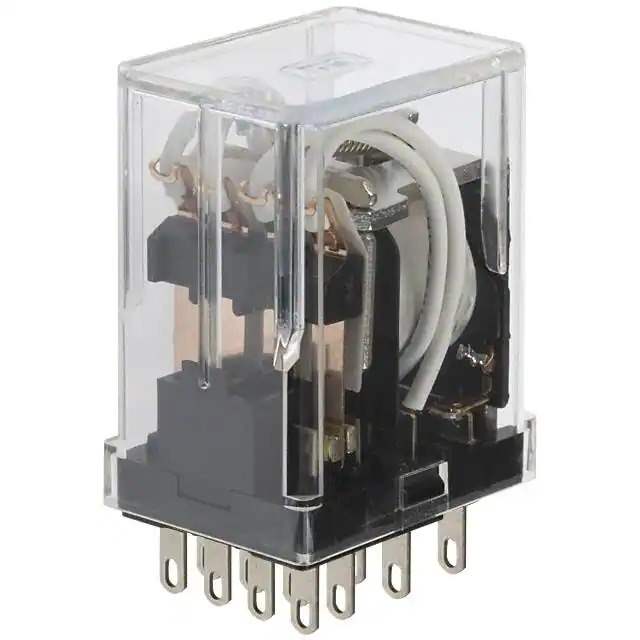

HC3-H-AC24V-F Real Image
Same model may have multiple batches, images only for reference.

HC3-H-AC24V-F

Part No HC3-H-AC24V-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE 3PDT 7A 24V / General Purpose Relay 3PDT (3 Form C) 24VAC Coil Socketable
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series HC
Package Tube
Product Status Obsolete
Mounting Type Socketable
Coil Voltage 24VAC
Contact Form 3PDT (3 Form C)
Contact Rating (Current) 7 A
Switching Voltage 250VAC - Max
Coil Current 50 mA
Coil Type Non Latching
Termination Style Plug In
Must Operate Voltage 19.2 VAC
Must Release Voltage 7.2 VAC
Operate Time 20 ms
Release Time 20 ms
Temperature Range - Operating -50°C ~ 70°C
Contact Material Silver Alloy, Cadmium Free
Relay Type General Purpose
Base Product Number HC3-H-AC
Standard Package 20 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 920014-HC3-H-AC24V-F
Ultra Librarian 3D Model Ultra Librarian HC3-H-AC24V-F CAD Model

Description

The Panasonic HC series power relay is a versatile component designed for various applications.

  • Contact Form: 3PDT (3 Form C)
  • Contact Rating: 7 A
  • Switching Voltage: 250VAC
  • Coil Voltage: 24VAC
  • Coil Current: 50 mA
  • Termination: plug-in style
  • Standard Package: 20 pcs
  • Temperature Range: -50°C to 70°C
  • Manufacturer: Panasonic
