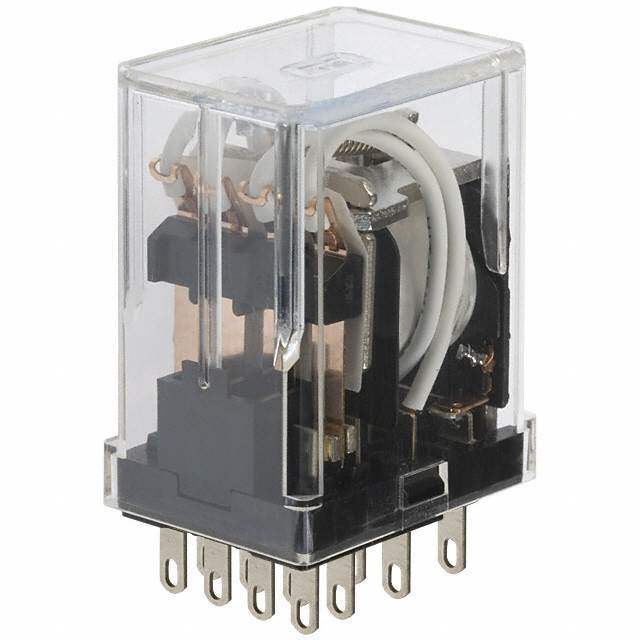

HC4-H-DC48V Real Image
Same model may have multiple batches, images only for reference.

HC4-H-DC48V

Part No HC4-H-DC48V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE 4PDT 5A 48V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 18.5mA
Coil Voltage 48VDC
Contact Form 4PDT (4 Form C)
Contact Rating (Current) 5A
Switching Voltage 250VAC - Max
Turn On Voltage (Max) 38.4 VDC
Turn Off Voltage (Min) 4.8 VDC
Operate Time 20ms
Release Time 20ms
Mounting Socketable
Termination Style Plug In
Coil Power 900 mW
Coil Resistance 2.6 kOhms
Temperature Range - Operating -50°C to 70°C
Win Source Part Number 204592-HC4-H-DC48V
Popularity Medium
Supply and Demand Status Limited
Quantity per package 20
Ultra Librarian 3D Model Ultra Librarian HC4-H-DC48V CAD Model

Description

The Panasonic Electric Works 204592-HC4-H-DC48V is a 4PDT (4 Form C) general-purpose relay with a coil voltage of 48VDC.

  • Contact Form: 4PDT (4 Form C)
  • Coil Voltage: 48VDC
  • Mounting: Socketable
  • Coil Resistance: 2.6 kOhms
  • Coil Current: 18.5mA
  • Operating Temperature: -50°C to 70°C
  • Release Time: 20ms
  • Contact Rating: 5A
  • Switching Voltage: 250VAC - Max
